SPA Massage Tub Pump, DXD-8X
Request a Quote
Working Conditions
- Medium temperature: 5-50℃
- Environmental temperature: ≤50℃
- Humidity: 65% RH
- Maximum working pressure: 0.4MPa

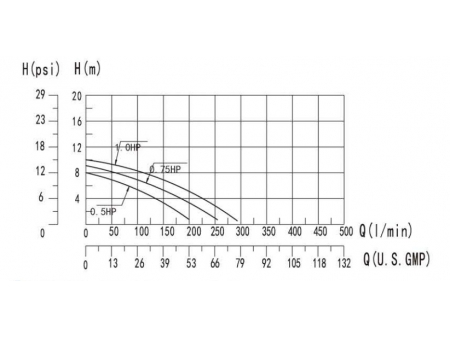

Performance Curve
Technical Data
| Model | Voltage | Power | Rotating speed (r/min) | Maximum lift (m) | Maximum flow (L/min) | Insulation class | Gross weight (kg) | Certification | |
| kW | HP | ||||||||
| DXD-8X-350 | 230V/50Hz | 0.35 | 0.5 | 2850 | 8.0 | 200 | F | 5.5 | |
| DXD-8X-550 | 230V/50Hz | 0.55 | 0.75 | 2850 | 9.0 | 267 | F | 6.5 | |
| DXD-8X-750 | 230V/50Hz | 0.75 | 1.0 | 2850 | 11.0 | 285 | F | 6.5 | |
| DXD-8Y-350 | 230V/60Hz | 0.35 | 0.5 | 3450 | 8.0 | 200 | F | 5.5 | |
| DXD-8Y-550 | 230V/60Hz | 0.55 | 0.75 | 3450 | 9.0 | 267 | F | 6.5 | |
| DXD-8Y-750 | 230V/60Hz | 0.75 | 1.0 | 3450 | 11.0 | 285 | F | 6.5 | |
| DXD-8Z-350 | 115V/60Hz | 0.35 | 0.5 | 3450 | 8.0 | 200 | F | 5.5 | UL |
| DXD-8Z-550 | 115V/60Hz | 0.55 | 0.75 | 3450 | 9.0 | 267 | F | 6.5 | UL |
| DXD-8Z-750 | 115V/60Hz | 0.75 | 1.0 | 3450 | 11.0 | 285 | F | 6.5 | UL |
