SPA Massage Tub Pump, DXD-8M
Request a Quote

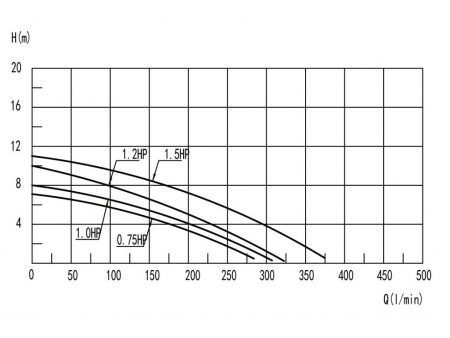

Performance Curve
Technical Data
| Model | Voltage | Power | Rotating speed (r/min) | Maximum lift (m) | Maximum flow (L/min) | Insulation class | Gross weight (kg) | Certification | |
| kW | HP | ||||||||
| DXD-8L-550 | 230V/60Hz | 0.55 | 0.75 | 3450 | 7.0 | 285 | F | 6.0 | |
| DXD-8L-750 | 230V/60Hz | 0.75 | 1.0 | 3450 | 8.0 | 320 | F | 7.0 | IEC |
| DXD-8L-900 | 230V/60Hz | 0.9 | 1.2 | 3450 | 10.0 | 335 | F | 8.0 | IEC |
| DXD-8L-1100 | 230V/60Hz | 1.1 | 1.5 | 3450 | 11.0 | 370 | F | 6.0 | IEC |
| DXD-8M-550 | 115V/60Hz | 0.55 | 0.75 | 3450 | 7.0 | 285 | F | 6.0 | |
| DXD-8M-750 | 115V/60Hz | 0.75 | 1.0 | 3450 | 8.0 | 320 | F | 7.0 | UL |
| DXD-8M-900 | 115V/60Hz | 0.9 | 1.2 | 3450 | 9.0 | 350 | F | 9.0 | UL |
| DXD-8M-1100 | 115V/60Hz | 1.1 | 1.5 | 3450 | 11.0 | 370 | F | 9.0 | UL |
Packing: 335mm×160mm×230mm
Optional function: timer & no water protection
