Swimming Pool Pump, Series DXD-320YM
Request a Quote

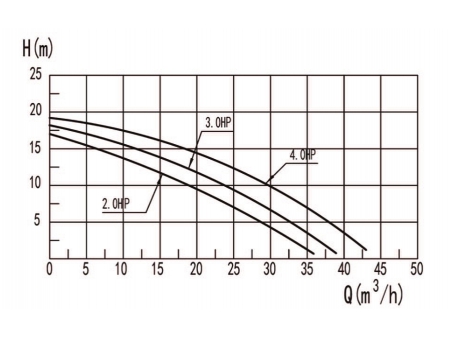

Performance Curve
Working conditions
- Medium temperature: 5-50℃
- Environmental temperature: ≤50℃
- Humidity: 65% RH
- Maximum working pressure: 0.4MPa
With proven product quality and performance, we are confident to offer:
- Pool equipment wholesale for distributors
- Everything needed from pool and Spa equipment to pool accessories for pool & Spa contractor
- OEM service for branded suppliers and manufacturers of pool equipment and supplies
- Manufacturing service of pool equipment and supplies for the factories with limited production capacity and product variations.
Technical data
| Model | Voltage | Power | Rotating speed(r/min) | Maximum Lift(m) | Maximum flow (m³/h) | Insulation class | Protection grade | Gross weight(kg) | |
| KW | HP | ||||||||
| DXD-320YM | 230V/50Hz | 1.5 | 2.0 | 2850 | 17.0 | 36 | F | IP X5 | 17.0 |
| DXD-320YM | 230V/60Hz | 1.5 | 2.0 | 3450 | 17.0 | 36 | F | IP X5 | 17.0 |
| DXD-320YM | 115V/60Hz | 1.5 | 2.0 | 3450 | 17.0 | 36 | F | IP X5 | 17.0 |
| DXD-330YM | 230V/50Hz | 2.1 | 3.0 | 2850 | 18.0 | 39 | F | IP X5 | 18.0 |
| DXD-330YM | 230V/60Hz | 2.1 | 3.0 | 3450 | 18.0 | 39 | F | IP X5 | 18.0 |
| DXD-330ZM | 115V/60Hz | 2.1 | 3.0 | 3450 | 18.0 | 39 | F | IP X5 | 18.0 |
| DXD-320YM | 380V/50Hz | 1.5 | 2.0 | 2850 | 17.0 | 36 | F | IP X5 | 17.0 |
| DXD-330YM | 380V/50Hz | 2.1 | 3.0 | 2850 | 18.0 | 39 | F | IP X5 | 18.0 |
| DXD-340YM | 380V/50Hz | 2.8 | 19.0 | 2850 | 19.0 | 43 | F | IP X5 | 19.0 |
Packing: 750mm×295mm×465mm Container:20＇: 380pcs 40＇ 760pcs
Optional function: timer & no water protection
