SPA Massage Circulating Pump, DXD-310T
Request a Quote

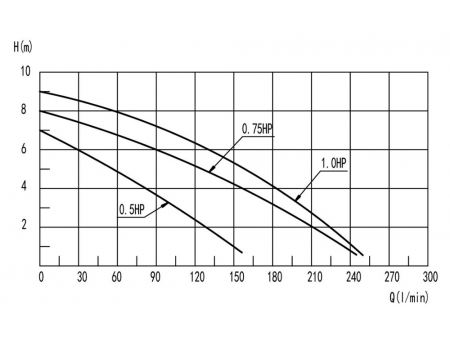

Performance Curve
Working conditions
- Medium temperature: 5-50℃
- Environmental temperature: ≤50℃
- Humidity: 65% RH
- Maximum working pressure: 0.4MPa
With proven product quality and performance, we are confident to offer:
- Pool equipment wholesale for distributors
- Everything needed from pool and Spa equipment to pool accessories for pool & Spa contractor
- OEM service for branded suppliers and manufacturers of pool equipment and supplies
- Manufacturing service of pool equipment and supplies for the factories with limited production capacity and product variations.
Technical data
| Model | Voltage | Power | Rotating speed(r/min) | Maximum Lift(m) | Maximum flow(l/min) | Insulation class | Protection grade | Gross weight(kg) | Certification | |
| KW | HP | |||||||||
| DXD-310T-350 | 230V/50Hz | 0.35 | 0.5 | 2850 | 7.0 | 167 | F | IP X5 | 4.5 | CE TÜV |
| DXD-310T | 230V/60Hz | 0.35 | 0.5 | 3450 | 7.0 | 167 | F | IP X5 | 4.5 | |
| DXD-310T | 115V/60Hz | 0.35 | 0.5 | 3450 | 7.0 | 167 | F | IP X5 | 4.5 | |
| DXD-310T | 230V/50Hz | 0.55 | 0.75 | 2850 | 8.0 | 250 | F | IP X5 | 5.5 | |
| DXD-310T | 230V/60Hz | 0.55 | 0.75 | 3450 | 8.0 | 250 | F | IP X5 | 5.5 | |
| DXD-310T | 115V/60Hz | 0.55 | 0.75 | 3450 | 8.0 | 250 | F | IP X5 | 5.5 | |
| DXD-310T-750 | 230V/50Hz | 0.75 | 1.0 | 2850 | 9.0 | 261 | F | IP X5 | 5.5 | CE TÜV |
| DXD-310T | 230V/60Hz | 0.75 | 1.0 | 3450 | 9.0 | 261 | F | IP X5 | 5.5 | |
| DXD-310T-750 | 115V/60Hz | 0.75 | 1.0 | 3450 | 9.0 | 261 | F | IP X5 | 5.5 | UL |

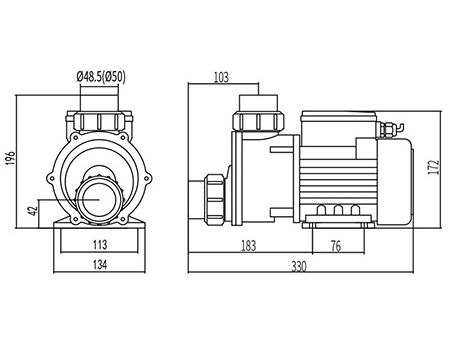

Packing: 355mm×160mm×230mm Container: 20＇: 1600pcs 40＇ 3000pcs
Optional function: timer & no water protection
