Vertical Water Pump Motor

Request a Quote

Website: http://semc-motors.com/1-1-7-vertical-water-pump-motor.html

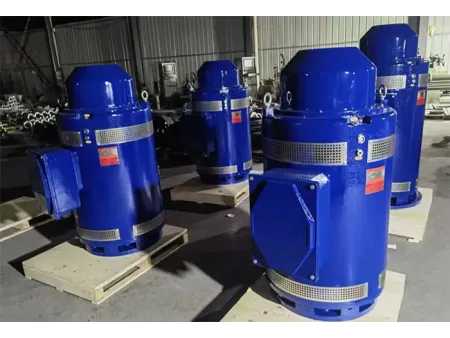

Vertical hollow shaft motor for driving submersible pumps

Our vertical water pump motors are VHS motors for driving submersible pumps. These motors and pumps work together submerged in water to extract groundwater from deep wells and can also be used for water extraction projects from rivers, reservoirs, and canals. These motors are mainly used for farmland irrigation, providing water for people and livestock in highland areas, and water supply and drainage for urban, industrial, railway, mining, and construction sites.

• Insulation class: class F
• Service factor: 1.15
• Altitude: 1000-2000m
• Protection degree: IP23/IP54/IP55
• GB design, special balancing
• Equipped with steel ball type anti-reverse mechanism
• Output Voltage: 380-415V 50HZ
• Material: Cast steel
• Mounting type: Vertical P-Base
• Shaft position: Vertical
• PWS, special balancing
• Startup mode: Star delta starter/VFD/soft starter
• Wide voltage range: 300-460V
• Insulated thrust bearings (Optional): TMB (standard), NSK, SKF, and FAG
• Warranty: 1-2 years
• Ambient temperature: 50-60℃
• Altitude: 1000-2000m

Specifications

(380-415V 50HZ, 3-phase, IE3 efficiency)

Model	Rated Power (kW)	Speed (RPM)	Rated Voltage (V)	Efficiency (%)	Axial Thrust Load (N)	Coupling Height H1	Coupling Diameter D1	Keyway F1	Weight (kg)
YLB132-1-2	5.5	3000	380~415	89.5	7840	483	20	6	111
YLB132-2-2	7.5	3000	380~415	90.2	7840	483	20	6	115
YLB160-1-2	11	3000	380~415	91.0	9800	759	28	8	218
YLB160-2-2	15	3000	380~415	91.0	9800	759	28	8	238
YLB160-1-4	11	1500	380~415	92.4	12740	759	28	8	220
YLB160-2-4	15	1500	380~415	93.0	12740	759	28	8	240
YLB180-1-2	18.5	3000	380~415	91.7	12740	808	28	8	272
YLB180-2-2	22	3000	380~415	91.7	12740	808	28	8	285
YLB180-1-4	18.5	1500	380~415	93.6	15680	808	32	10	300
YLB180-2-4	22	1500	380~415	93.6	15680	808	32	10	320
YLB200-1-2	30	3000	380~415	92.4	16660	866	36	10	380
YLB200-2-2	37	3000	380~415	93.0	16660	866	36	10	410
YLB200-1-4	30	1500	380~415	94.1	21560	866	36	10	425
YLB200-2-4	37	1500	380~415	94.5	21560	866	36	10	455
YLB200-3-4	45	1500	380~415	95.0	21560	866	36	10	485
YLB250-1-4	55	1500	380~415	95.4	28420	1092	45	14	710
YLB250-2-4	75	1500	380~415	95.4	28420	1092	45	14	740
YLB250-3-4	90	1500	380~415	95.4	28420	1092	45	14	800
YLB280-1-4	110	1500	380~415	95.8	39200	1314	50	14	1220
YLB280-2-4	132	1500	380~415	95.8	39200	1314	50	14	1355
YLB280-3-4	150	1500	380~415	96.2	39200	1314	50	14	1490
YLB280-4-4	185	1500	380~415	96.2	39200	1363	50	14	1630
YLB315-1-4	185	1500	380~415	96.2	47150	1546	60	18	1900
YLB315-2-4	200	1500	380~415	96.2	47150	1546	60	18	2020
YLB315-3-4	225	1500	380~415	96.2	47150	1546	60	18	2100
YLB315-4-4	260	1500	380~415	96.2	47150	1546	60	18	2180
YLB355-1-4	280	1500	380~415	96.2	58930	1687	65	18	2940
YLB355-2-4	315	1500	380~415	96.2	58930	1687	65	18	3050
YLB355-3-4	355	1500	380~415	96.2	58930	1687	65	18	3180
YLB355-4-4	400	1500	380~415	96.2	58930	1847	65	18	3310
YLB355-5-4	450	1500	380~415	96.2	58930	1847	65	18	3450
