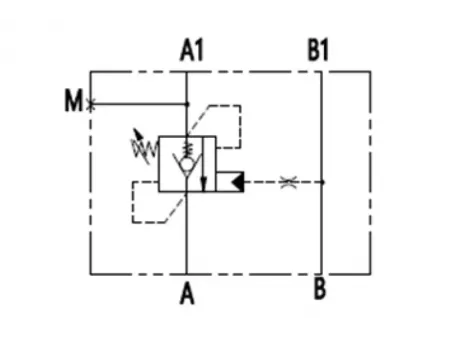

MCBS Single Counterbalance Valve
Request a Quote
- Modular design with a compact structure, delivering safe and reliable operation
- Minimizes hydraulic shock during opening and closing, sustaining stable pressure control
- Flexible installation to accommodate a wide range of machinery and system configurations
Model Options
| Model | Pressure | Flow |
| MCBS-08 Single Counterbalance Valve | 350bar | 40L/min |
| MCBS-10 Single Counterbalance Valve | 350bar | 70L/min |
| MCBS-12 Single Counterbalance Valve | 350bar | 110L/min |
Specifications
| Rated Pressure | 350bar |
| Rated Flow | 40L/min 70L/min 110L/min |
| Fluid Temperature Range | -30℃～100℃ |
| Ambient Temperature Range | -20℃～80℃ |
| Valve Body Material | High strength cast iron (optional:aluminum alloy,carbon steel) |
| Oil Viscosity Range | ISO 20～400mm²/s |
Performance Curve

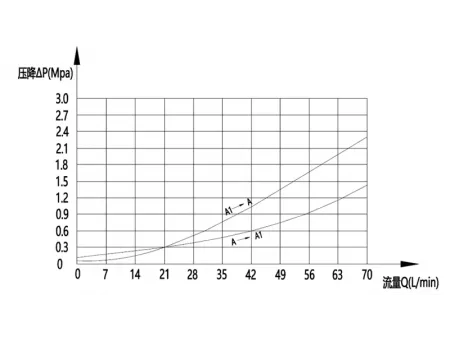

MCBS-10 Single Counterbalance Valve
MCBS-12 Single Counterbalance Valve
Applications
Our single counterbalance valve, designed to maintain load stability and ensure smooth actuator motion, is widely used in:
- Graders: Ensures stable movement and secure positioning of the moldboard blade during leveling operations.
- Telehandlers: Prevents instability or sudden stalling of stabilizer legs and telescopic extensions, ensuring safe and steady motion.
- Aerial work platforms: Minimizes unwanted boom movement, preventing erratic changes during lifting, telescoping, or rotation to enhance operator safety.
- Boom pump trucks: Maintains smooth, controlled boom movements during pumping operations, avoiding sudden or unstable actions.
