SMC Plastic Enclosures

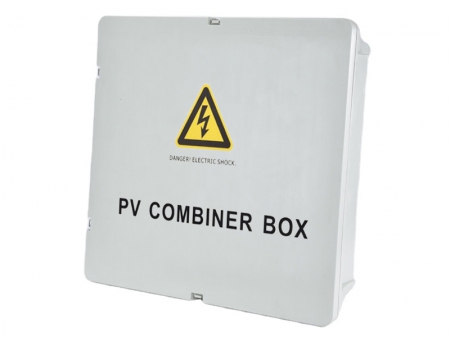

As often used in challenging outdoor environments, equipment like electrical enclosures (such as combiner boxes and switch cabinets) must meet stringent criteria for corrosion resistance, durability, impact resistance, weather resilience, and internal component robustness. When compared to traditional metal ones, IPKIS offers SMC plastic enclosures boasting double the corrosion resistance, 2 to 3 times the lifespan, superior impact and weather resistance, and a remarkable 22% higher protection level. What’s more, our innovative silicone sealing strip propels our enclosures to an impressive IP67 protection rating, making them the recommended safety solution for water-based photovoltaic projects.
| Order No. | Size (mm) | |||||
| Length | Width | Height | Available Depth | Base Plate Installation | Wall Installation | |
| Material: SMC | L | W | D | C | B*A | E*S |
| | 930 | 730 | 260 | 230 | 816*620 | 816*701 |
| | 930 | 730 | 260 | 230 | 816*620 | 897*620 |
| | 730 | 580 | 260 | 230 | 621*470 | 621*551 |
| | 730 | 580 | 260 | 230 | 621*470 | 702*470 |

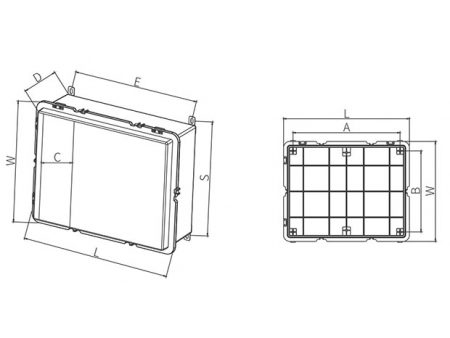

- L: Outer height dimension
- W: Outer width dimension
- D: Outer depth dimension
- C: Available depth dimension
- B: Bottom plate installation dimension
- A: Base plate installation dimension
- E: Box installation dimension
- S: Box installation dimension

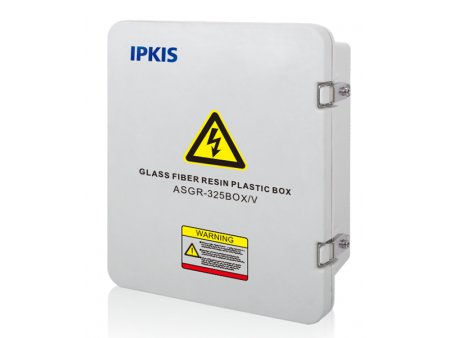

The Gen 2 “Submarine Series” enclosure involves a fresh redesign of the molds, resulting in a more appealing appearance and finer craftsmanship. For instance, the interior no longer features reinforced texture lines found in the Gen 1 enclosure.
| Order No. | Size (mm) | |||||
| Length | Width | Height | Available Depth | Base Plate Installation | Wall Installation | |
| Material: SMC | L | W | D | C | B*A | E*S |
| | 933 | 733 | 260 | 230 | 790*590 | 790*672 |
| | 933 | 733 | 260 | 230 | 590*590 | 672*590 |

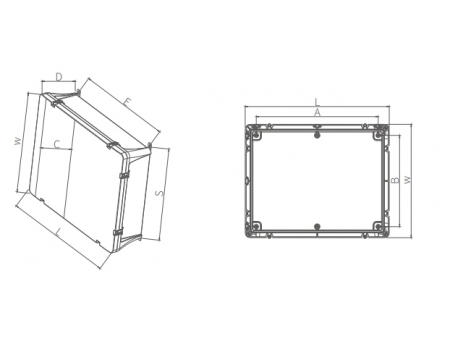

- L: Outer height dimension
- W: Outer width dimension
- D: Outer depth dimension
- C: Available depth dimension
- B: Bottom plate installation dimension
- A: Base plate installation dimension
- E: Box installation dimension
- S: Box installation dimension
Embracing this cutting-edge technology, contractors and manufacturers in the solar power industry are swiftly transitioning to SMC plastic enclosures. We are optimistic that that within a few short years, the prevalence of SMC enclosures will not only match but surpass that of traditional metal protection solutions.
Years of dedicated research and market insights have paved the way for first-generation enclosures of IPKIS, available in several sizes and models. These meticulously crafted enclosures are entirely produced in-house, utilizing our advanced production equipment. The industry's response has been overwhelmingly positive, drawing attention and acclaim.
Building on this success, we proudly introduce the second generation of photovoltaic safety enclosures. With a registered trademark shown below, this specialized line solidifies our commitment to providing top-tier plastic protective and sealing enclosures.
