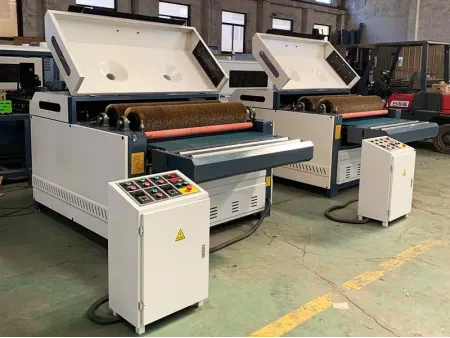

The low frame wood brushing machine is designed for brushing and polishing veneer-faced or solid wood panels. It delivers consistent grain texture and smooth surface finishing, effectively replacing manual sanding. This model features a compact low-frame structure while maintaining stable operation and high processing accuracy for brushed or textured finishes on wood surface.

Specifications

Machine dimensions (L×W×H) 2300×1900×1500mm
Machine weight 1300 kg
Maximum working width 1300 mm
Minimum workpiece length 300 mm
Workpiece thickness range 3-100 mm

Brushing Configuration (4 Brush Units)

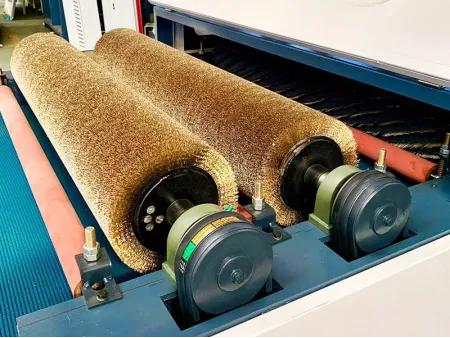

Units 1 & 2
Steel wire brushing rollers with fixed speed (approx. 1000 RPM), wire gauge 0.5 mm and 0.4 mm

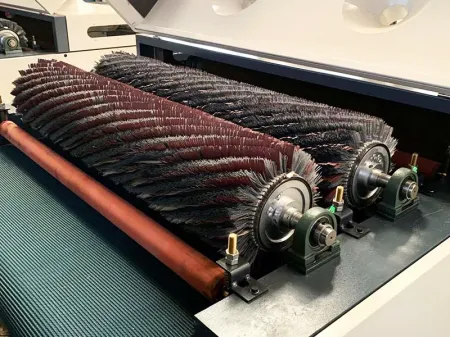

Units 3 & 4
Polishing rollers with abrasive filament sanding strips, frequency-controlled variable speed
Machine frame
Fabricated from national-standard channel steel; brushing platform milled on a gantry machine for enhanced flatness and structural precision

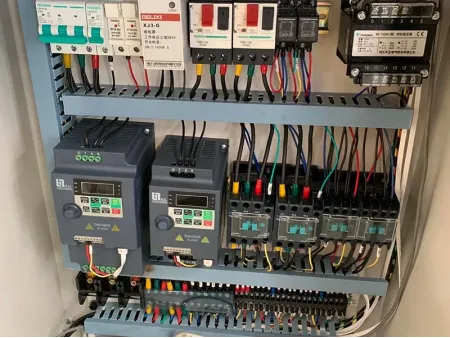

Motor Specifications

Steel brush roll motor 11 kW×2
Polishing roll motor 1.5 kW×2 (variable frequency speed control)
Lifting motor 0.55 kW×1
Conveyor motor 1.5 kW×1 (infinite variable speed)
Total power 27.5 kW
Power supply 380V, 50 Hz, 3-phase
Recommended cable 16 mm², 3-core copper cable
