0927 Series Brass 2/2-Way Solenoid Valve

Request a Quote

Website: http://solenoidvalve-en.com/1-12-brass-2-2-way-solenoid-valve-0927-series.html

Pilot Operated, Normally Closed
Port Size: 1/4"–2"
Fluid Temperature: -5°C to 80°C (120℃ optional)
Operating Pressure: 0.5–1.6MPa
Media: air, water, light oil, neutral gas

0927 series is an innovative pilot-operated solenoid valve with 360° omnidirectional mounting, allowing flexible installation in any direction and enhancing layout and piping flexibility. The modular design with an energy-saving pilot mechanism ensures easy maintenance and stable performance. The valve meets the industrial requirement of 16 bar operating pressure, significantly reducing overall operational costs and downtime.

Features

Supports horizontal, vertical, or inverted installation with full 360° flexibility for complex configurations
Modular design with diaphragm and pilot components that can be replaced independently for easier maintenance
Energy-efficient pilot-operated structure providing low power consumption and stable performance
Manual release mechanism at the bottom for emergency operation during power failure

Applications

This solenoid valve is suitable for industrial fluid systems requiring flexible installation, frequent maintenance, or space-constrained deployment, such as:

Automated production lines
Process control systems
Air compressors
Pipeline systems
Water supply
Light oil (diesel oil) systems

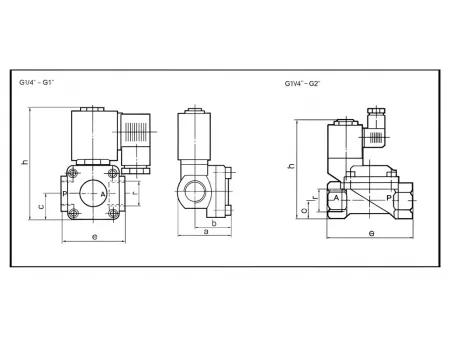

Dimensions (mm)

Model	Port Size (r)	Function	Orifice	A	B	C	E	H
0927000	1/4"	Normally closed (NC)	8mm	45	31.5	22	53	97
0927100	3/8"	Normally closed (NC)	10 mm	45	31.5	22	53	97
0927200	1/2"	Normally closed (NC)	12 mm	45	31.5	22	53	97
0927300	3/4"	Normally closed (NC)	20 mm	65	44	30	86	113
0927400	1"	Normally closed (NC)	25 mm	65	44	30	86	113
0927500	1-1/4"	Normally closed (NC)	32 mm	95	47	31	132	136
0927600	1-1/2"	Normally closed (NC)	40 mm	95	47	31	132	136
0927700	2"	Normally closed (NC)	50mm	112	55	39.5	160	155
0955105	1/4"	Normally open (NO)	8mm	45	31.5	22	53	114
0955205	3/8"	Normally open (NO)	10 mm	45	31.5	22	53	114
0955305	1/2"	Normally open (NO)	12mm	45	31.5	22	53	114
0955405	3/4"	Normally open (NO)	20mm	65	44	30	86	130
0955505	1"	Normally open (NO)	25mm	65	44	30	86	130
0955605	1-1/4"	Normally open (NO)	32mm	95	47	31	132	153
0955705	1-1/2"	Normally open (NO)	40 mm	95	47	31	132	153
0955805	2"	Normally open (NO)	50 mm	112	55	39.5	160	172

Specifications

Category	2/2-way solenoid valves
Mode of operation	Pilot operated	Port size	1/4"–2"
Series	927	Function	Normally closed (NC)
Body material	Brass	Wiring	DIN connector
Control method	Solenoid valve/override	Protection level	IP65/IP67
Operating pressure	0.5–1.6MPa	Mounting	Bracket required
Sealing material	NBR, EPDM, Viton	Recommended installation method	Free-mounting in any angle
Fluid temperature	-5°C to 80°C (120℃ optional)	Thread options	BSP, NPT thread
