2WH Series Brass 2/2-Way Solenoid Valve
Request a Quote
- Direct Acting, Normally Closed
- Port Size: 1/8"–3/8"
- Fluid Temperature: -5°C to 80°C (120℃ optional)
- Operating Pressure: 0–2.0MPa/0–3.0MPa
- Media: air, water, oil, gas
SENYA 2WH series is an ultra-compact direct-acting solenoid valve designed for industrial applications requiring compact size and high performance. Featuring a bottom-mounted dual-hole design, the valve is small, lightweight, and easy to install, eliminating the need for external brackets and enabling quick integration in confined areas where traditional valves cannot fit. It offers a fast 30 ms switching response and supports pressures up to 20 bar (continuous) and 30 bar (instantaneous), ideal for high-cycle and high-pressure fluid control applications.
Features
- Ultra-compact and lightweight design, suitable for narrow installation spaces
- Dual hole bottom mounting design and no bracket required for easy assembly
- Fast response with 30 ms switching time, and supports 20 bar continuous and 30 bar instantaneous high-pressure systems operation
- Durable and reliable structure with optional corrosion-resistant materials available for extended service life, and its rebust design requires simple maintenance
Applications
- Industrial automation equipment
- Pneumatic control systems
- Hydraulic circuits
- Packaging machinery
- Medical equipment
- Automated production lines

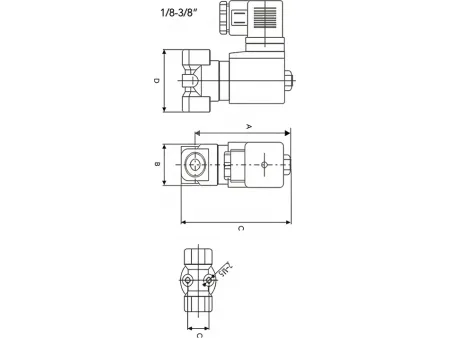

Dimensions (mm)
| Model | Port Size | A | B | C | D |
| | 1/8" | 66 | 30.3 | 80 | 40.5 |
| | 1/8" | 66 | 30.3 | 80 | 41.5 |
| | 1/4" | 66 | 30.3 | 80 | 40.5 |
| | 1/4" | 66 | 30.3 | 80 | 41.5 |
| | 1/4" | 59 | 24 | 75 | 40 |
| | 3/8" | 74 | 32.5 | 92 | 53 |
| | 3/8" | 74 | 32.5 | 92 | 53 |
| Note: Valves can be mounted in any position unless installation restrictions are specified. | |||||
Specifications
| Category | | ||
| Mode of operation | Direct acting | Port size | 1/8"–3/8" |
| Series | 2WH | Function | Normally closed (NC) |
| Body material | Brass | Wiring | Flying leads/DIN connector |
| Control method | Solenoid valve | Protection level | IP43/IP67 |
| Operating pressure | 0-2.0MPa/0-3.0MPa | Mounting | bottom mounting |
| Sealing material | NBR, Viton, EPDM, Silicone | Recommended installation method | Horizontally or vertically |
| Fluid temperature | -5°C to 80°C (120℃ optional) | Thread options | BSP, NPT thread |
