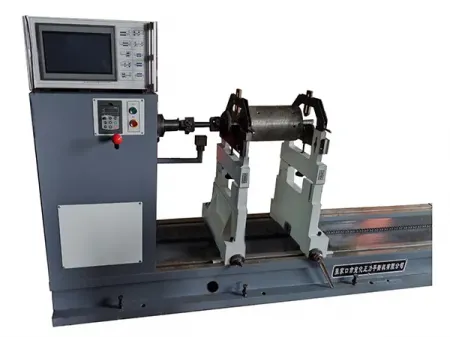

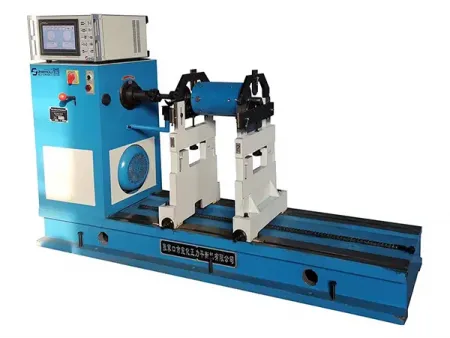

Horizontal Balancing Machine
Request a Quote
YYW-160
Hard-bearing balancing machine (universal joint drive) for workpiece with diameter of up to 1000mm and weight of 3-160kg
- Combines precision mechanics with modern electrical technology
- General-purpose horizontal hard-bearing balancing machine with independent intellectual property
- Simple operation with stable performance and high measurement accuracy
- Used in industries including automotive parts, printing, paper, electronics, machine tools, and aerospace
Applications
Suitable for dynamic balancing of used for balancing medium-sized rotors, including motors, pumps, centrifuges, blowers, spindles, textile winders, and agricultural equipment such as straw returning and corn harvesting machines.
- Motors balancing
- Pumps balancing
Specifications
| Workpiece weight | 3-160kg |
| Max. workpiece diameter | Ø1000mm |
| Journal diameter of workpiece | Ø10-90mm |
| Distance between two bearing supports | 60-1600mm/2200mm/2500mm |
| Min. achievable residual unbalance (eMar) | 1g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% |
| Balancing speed (variable speed control) | 180-1000 r/min |
Features
- Integrated H-type support frame with a lightweight yet reliable structure, offering low damping and strong rigidity in the vibration system.
- Uses a universal joint drive combined with an AC motor, ensuring high measuring accuracy.
- Before starting, operators only need to set basic parameters such as the distance between correction planes, the distance from correction planes to the supports, and the radius of the correction plane. With these adjustments, the balancing machine can display both unbalance value and phase in a single run.
Examples of Workpieces Our Machines Can Balance
- Feed crusher rotors
- Feed mixer shafts
- Corn harvester rotors
