YYQ-100

Hard-bearing balancing machine (belt drive) for workpiece with diameter of up to 900mm and weight of 3-100kg

Belt driven hard-bearing balancing machines for medium and small motor rotors as well as a variety of other rotating parts.
The belt drive avoids the interference that rigid couplings can create on the rotor, ensuring more accurate results.
Handles workpieces with a maximum diameter of 900 mm and a support length of over 1000 mm.

Applications

Used for balancing motor rotors, fan impellers, turbocharger rotors, crankshafts, and machine tool spindles. It is also suitable for long roller parts in paper-making and printing machinery.

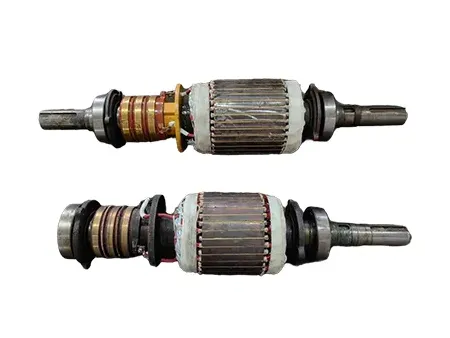

Motor rotors balancing

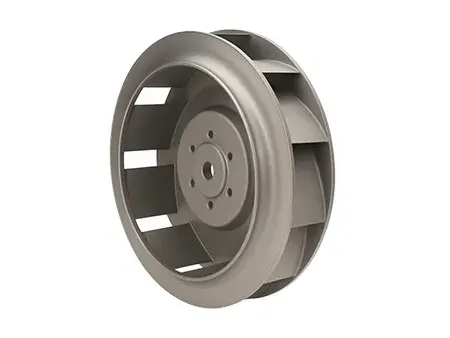

Fan impellers balancing
Crankshafts balancing

Specifications

Workpiece weight	3-100kg
Max. workpiece diameter	Ø900mm
Journal diameter of workpiece	Ø10-Ø90mm
Distance between two bearing supports	900-1000mm
Balancing speed	250-3000r/min
Min. achievable residual unbalance (eMar)	0.5g.mm/kg
Unbalance reduction ratio (URR)	≥90%

Features

Equipped with the ZL-210 dynamic balancing measuring system (touch screen type) as standard.
During balancing, only one startup is needed to display the size and position of the unbalance.
The belt drive design avoids interference from universal joints, which improves accuracy.
Loading and unloading rotors is more convenient thanks to the belt drive setup.
