Horizontal Balancing Machine
Request a Quote
YYWQ-300
Hard-bearing balancing machine (universal joint belt drive) for workpiece with diameter of up to 1200mm and weight of 5-300kg
- Horizontal hard-bearing balancing machine equipped with both universal joint and belt drives.
- Extended base design enables handling of larger rotors up to 1200 mm in diameter and 300 kg in weight.
- Can be configured with the ZL-210 digital measuring system, which quickly detects unbalance and shows results directly in grams and degrees.
- The dual-drive configuration improves versatility to balance different types of rotating components with accuracy and efficiency.
Applications
Suitable for dynamic balancing of motors, fans, pumps, as well as printing and paper machinery, ensuring accurate correction and stable performance across these applications.

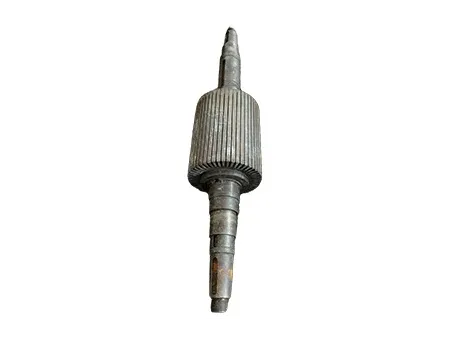

- Motor rotors balancing

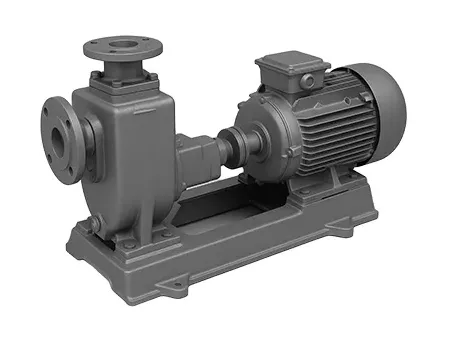

- Pump components balancing
Specifications
| Workpiece weight | Belt drive | 5-160kg |
| Universal joint drive | 10-300kg | |
| Max. workpiece diameter | Ø1200mm | |
| Journal diameter of workpiece | Ø10-90mm | |
| Distance between two bearing supports | 3000mm | |
| Balancing speed | Belt drive | 300-3000r/min |
| Universal joint drive | 180-1000r/min | |
| Min. achievable residual unbalance (eMar) | Belt drive | 0.5g.mm/kg |
| Universal joint drive | 1g.mm/kg | |
| Unbalance reduction ratio (URR) | ≥90% | |
Examples of Workpieces Our Machines Can Balance
- Multistage pump impellers
