Horizontal Balancing Machine
Request a Quote
YYWQ-500
Hard-bearing balancing machine (universal joint belt drive) for workpiece with diameter of up to 1200mm and weight of 10-500kg
- Horizontal hard-bearing balancing machine with dual-drive design using both universal joint and belt drive.
- Suitable for a wider range of components thanks to the flexible transmission setup.
- Handles rotors up to 1200 mm in diameter and 500 kg in weight with stable and accurate performance.
Applications
Widely used for dynamic balancing of fan rotors, agricultural machinery rotors, motor rotors, rolls, drums, crankshafts, and various centrifuge components, providing reliable correction across a wide range of industries.

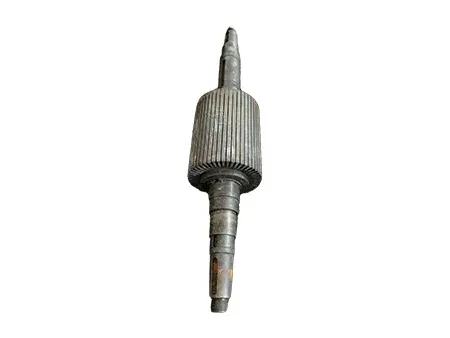

- Motor rotors

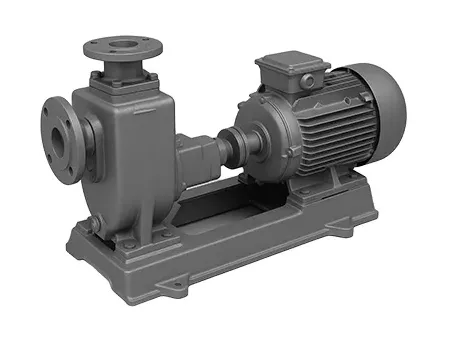

- Pump components
Specifications
| Workpiece weight | Belt drive | 10-160kg |
| Universal joint drive | 30-500kg | |
| Max. workpiece diameter | Ø1200mm | |
| Journal diameter of workpiece | Standard roller carriage | Ø10-90mm |
| Optional roller carriage | Ø90-180mm | |
| Distance between two bearing supports | 1500/2000mm (or based on negotiation) | |
| Balancing speed | 200-3000r/min | |
| Min. achievable residual unbalance (eMar) | Belt drive | 0.5g.mm/kg |
| Universal joint drive | 1g.mm/kg | |
| Unbalance reduction ratio (URR) | ≥90% | |
Features
- The belt drive can be selected for smaller workpieces to achieve higher accuracy, while universal joint drive is used for larger rotors, providing higher torque and safer operation.
- Dual-drive design works with a single measuring system, making it a cost-effective and easy-to-operate solution.
- Combines the functions of both universal joint and belt drive balancing machines in one unit.
- Can be equipped with the ZL-220 digital measuring system, which delivers quick and precise results, showing unbalance values directly in grams and degrees. The system also allows switching between light and heavy modes even after the rotor has stopped.
