Horizontal Balancing Machine
Request a Quote
YYQ-10/YYQ-16
Hard-bearing balancing machine (belt drive) for workpiece with diameter of up to 400mm and weight of 0.5-16kg
- Horizontal hard-bearing balancing machine with belt drive, suitable for a wide range of small to medium rotors
- Handles workpieces up to 400 mm in diameter and 16 kg in weight
- High-sensitivity design achieves a minimum unbalance resolution of 0.5 g·mm/kg
- Supports both single-plane and dual-plane balancing modes
- Quickly locates unbalance points and guides correction with precision
Applications
Suitable for balancing micro motors, small motor rotors, turbochargers, and automotive air conditioner rotors.

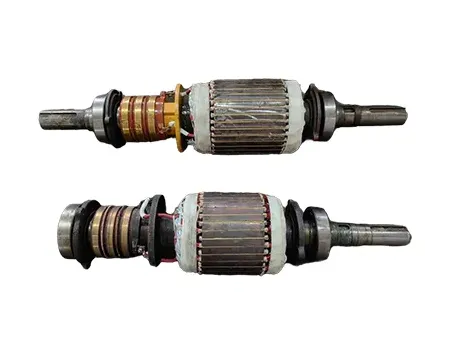

- Motor rotors balancing
Specifications
| Model | | |
| Workpiece weight | 0.5-10kg | 0.5-16kg |
| Max. workpiece diameter | 250mm | 400mm |
| Journal diameter of workpiece | 8-20mm | 8-24mm |
| Distance between two bearing supports | 40-500mm | 40-500mm |
| Balancing speed | 800-4500r/min | 1000-5000r/min |
| Min. achievable residual unbalance (eMar) | ≤0.5g.mm/kg | ≤0.5g.mm/kg |
| Unbalance reduction ratio (URR) | ≥90% | ≥90% |
Features
- The belt drive configuration allows stable operation. Before startup, users can input known parameters such as the distance between correction planes and the correction radius into the measuring unit. Once the rotor begins to rotate, the system provides a clear display of unbalance magnitude and phase.
- Equipped with advanced measuring options, including the ZL-220 dynamic balancing measuring system (digital display type) and the ZL-210 dynamic balancing measuring system (touch screen type), to ensure reliable performance and easy operation.
