Horizontal Balancing Machine

Request a Quote

Website: http://balancingmachine-en.com/1-2-2-19-hard-bearing-balancing-machine.html

YYQ-1000

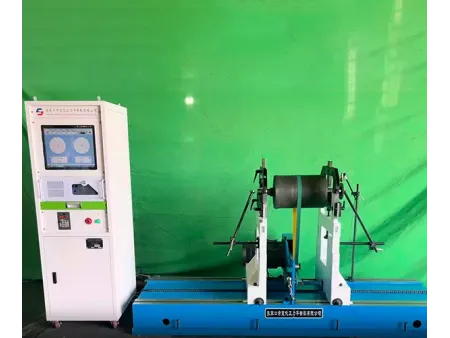

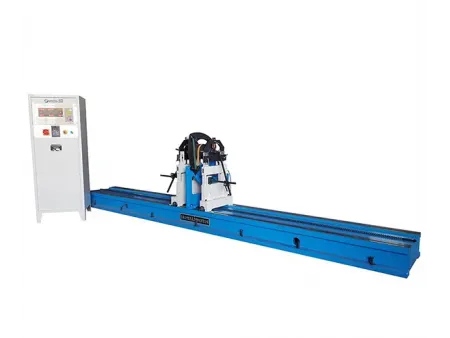

Hard-bearing balancing machine (belt drive) for workpiece with diameter of up to 1600mm and weight of 30-1000kg

Belt drive hard-bearing balancing machine designed for medium and large rotors
Eliminates residual unbalance from universal joints and coupling fixtures
Ensures that balancing accuracy reflects the true condition of the workpiece
Capable of improving overall balance precision and reliability

Applications

Ideal for balancing medium-sized motor rotors, fan impellers, and machine tool spindles. It is also used for long roller parts in paper-making and printing machinery.

Medium-size motor rotors balancing
Medium-size fan impellers balancing

Specifications

Workpiece weight	30-1000kg
Max. workpiece diameter	Ø1600mm
Journal diameter of workpiece	Standard roller carriage	Ø15-Ø120mm
	Optional roller carriage	Ø120-Ø240mm
Distance between two bearing supports	200-2400mm (or based on negotiation)
Min. achievable residual unbalance (eMar)	0.5g.mm/kg
Balancing speed	50-1000r/min
Unbalance reduction ratio (URR)	≥90%

Examples of Workpieces Our Machines Can Balance

Standard rotors
Rollers

Features & Advantages

Operators can enter the distance and radius of the two correction planes before starting the balancing machine, this allows system to calculate unbalance values accurately once the rotor begins to rotate.
Both unbalance size and angle are displayed clearly during the test, to ensure the results are easy to interpret.
Supplied with advanced measuring systems, including the ZL-220 embedded dynamic balancing measuring system and the ZL-210 dynamic balancing measuring system (industrial PC type), offering flexibility for different applications.
