Horizontal Balancing Machine
Request a Quote
YYW-6000A
Hard-bearing balancing machine (universal joint drive) for workpiece with diameter of up to 3000mm and weight of 200-6000kg
- Heavy-duty hard-bearing balancing machine for large workpieces
- Supports workpieces up to 6000 kg in weight and Ø3000 mm in diameter
- Standard workpiece length of 2500 mm, extendable to 3000 mm or 3500 mm
- Custom configurations available to meet specific requirements
Applications
Commonly used for balancing workpieces such as motor rotors, internal combustion engine components, fan impellers, and pump rotors.

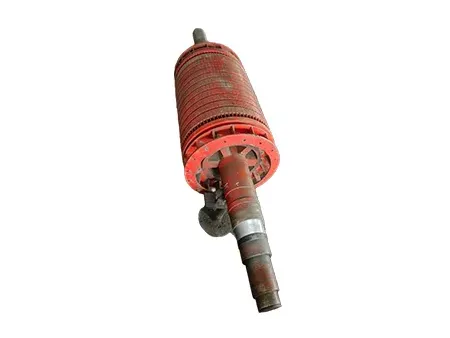

- Motor rotors balancing

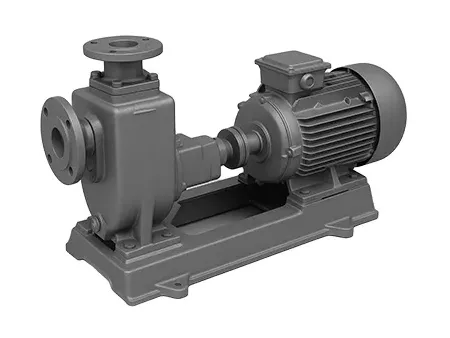

- Pump rotors balancing
Specifications
| Workpiece weight | 200-6000kg | |
| Max. workpiece length | 4000mm | |
| Max. workpiece diameter | Ø3000mm | |
| Journal diameter of workpiece | Standard roller carriage | Ø40-Ø210mm |
| Optional roller carriage | Ø150-Ø300mm | |
| Balancing speed (5-step speed control) | 0-220r/min | |
| 0-440r/min | ||
| 0-760r/min | ||
| 0-1250r/min | ||
| 0-1570r/min | ||
| Unbalance reduction ratio (URR) | ≥90% | |
| Min. achievable residual unbalance (eMar) | 1g.mm/kg | |
| Motor power (with gearbox) | 30kW | |
Features
- These balancing machines can be equipped with the ZL-220 dynamic balancing measuring system (digital display type), which shows unbalance value and phase, includes automatic memory, and is simple to operate.
- The ZL-210 dynamic balancing measuring system (touch screen type) is also available, making operation more intuitive and flexible.
- Flexible configuration ensures optimized setups to match different user requirements.
Examples of Workpieces Our Machines Can Balance
- Double-suction fan impeller rotor
