YONG-FENG Y120 Hydraulic Hose Crimping Machine
Application
The crimping force of the YONG-FENG Y120 hydraulic hose crimping machine is 2000kN, with a crimp range of 6~88mm and 10 sets of standard dies. YONG-FENG Y120 crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, fire sprinkler hoses, automobile brake cables, water hoses, air conditioner hoses, bathroom hoses, metal pipes, steel tubes, etc.
Max. inner diameter
Industrial hoses: 2½"
Hoses with 2 braided wires: 2"
Hoses with 4 spiral wires: 2"
Low pressure hoses φ6, φ8, φ10, φ12
| Crimp head material | FORGE STEEL |
| Crimp range | 6-88mm |
| Hose size | 2", 4SN |
| Max. Crimp range | 118mm |
| Opening without dies | 118mm |
| Opening | 25mm |
| System pressure | 31.5Mpa |
| Crimp force | 2000kN |
| Drive | 3kw/4kw |
| Standard voltage | Customized |
| Control | Digital CNC with display |
| Standard dies | 10 sets |
| Weight | 240kg |
| L x W x H | 650*500*730mm |
| Machine base | Included |
| Dies quick change tool | Included |
| Foot pedal | Included |
| Customized special die | Included |
| Instruction book | Included |
Specification of dies
High pressure dies:| No. | Φ6 | Φ8 | Φ10 | Φ13 | Φ16 | Φ19 | Φ25 | Φ32 | Φ38 | Φ51 |
| Crimp range | 15-25mm | 18-28mm | 20-30mm | 23-33mm | 26-36mm | 29-39mm | 37-47mm | 46-56mm | 51-61mm | 63-73mm |
| Length | 45mm | 45mm | 45mm | 50mm | 65mm | 65mm | 80mm | 80mm | 80mm | 80mm |
Low pressure dies:
| No. | Φ6 | Φ8 | Φ10 | Φ12 |
| Crimp range | 6-16mm | 8-18mm | 10-20mm | 12-22mm |
| Length | 35mm | 35mm | 35mm | 35mm |
Details
Digital controlled crimping machines have obvious advantages over traditional crimpers:
- The operation panel is clear and easy to understand with prompt reaction speed and simple operation.
- The traditional manual adjustment is replaced by the digital controlled electrical ruler, with a crimping precision of 0.01mm, which is 10 times that of traditional crimpers.
- The crimping is not only more precise, but also nicer and neater.
Material
The oil cylinder cover, oil tank and piston rod are made of 40 chromium, with a surface hardness of HRC26-30 and an operation layer hardness of HRC59-63. The harden layer is 2mm thick.

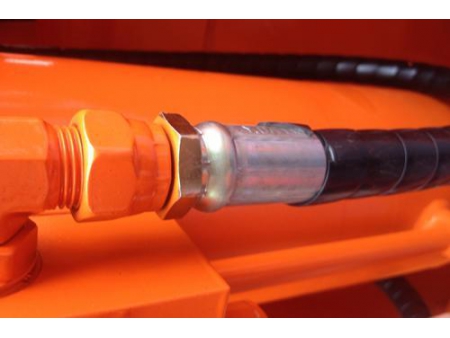

Hydraulic conduction system
With the pipeless valve block connection, the hydraulic conduction system is oil tight and durable with stable pressure conduction, and greatly improves the performance of the crimping machine.
Die connection
Our crimping dies are connected through magnetism, which make it convenient for assembly and disassembly, and the crimping is neat and nice.
