Request a Quote

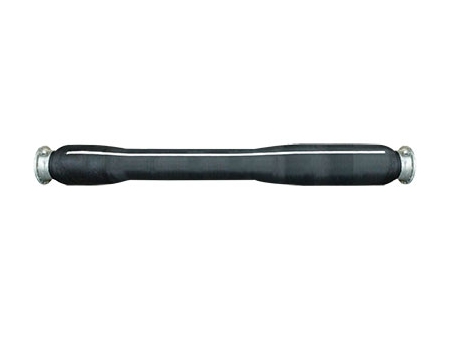

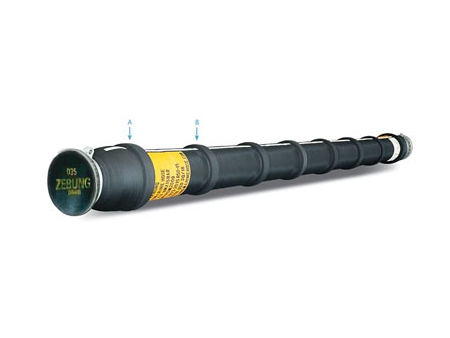

Designed without float collards, the submarine hose features textile reinforced bonded elastomers used as the lining. This one end reinforced subsea hose is used for connecting with the buoy systems, subsea manifolds, etc.

Features
Rated working pressure: 15, 19 or 21 bar
Safety factor: 5:1
Electrical continuity: Discontinuous or as request

Technical Parameters
(Following data set under rated working pressure of 15, 19 or 21 bar)

Inner Diameter
mm
Weight in Air Empty
kg
Outside Diameter
mm
Min. Bending Radius
m
9.1m 10.7m 12.2m A B
150(6") 342/137 380/152 418/167 305 210 0.6(2.0')
250(10") 639/272 712/299 785/326 415 320 1.0(3.3')
300(12") 810/305 902/334 994/363 485 375 1.2(4.0')
400(16") 1216/560 1359/619 1502/678 575 475 1.6(5.3')
500(20") 1600/778 1792/858 1984/938 695 580 2.0(6.6')
600(24") 2404/1180 2680/1309 2956/1438 810 700 2.4(8.0')

Note: Specifications can be made upon request.

Certificates

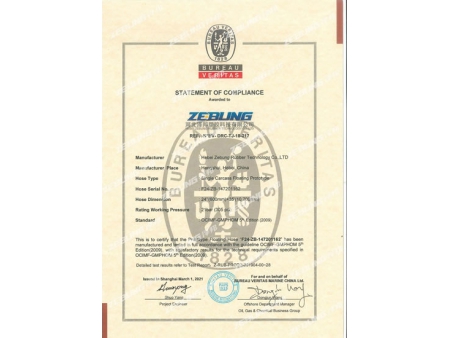

  • BV Test Report (Single Carcass Floating Prototype-DN300mm)
  • BV Test Report (Single Carcass Floating Prototype-DN600mm)

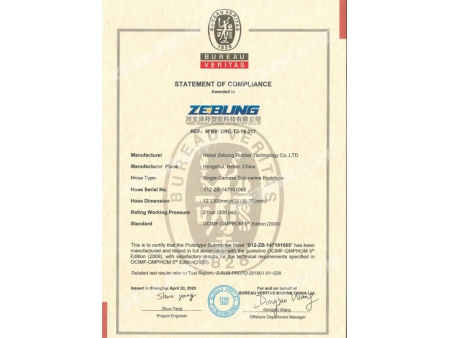

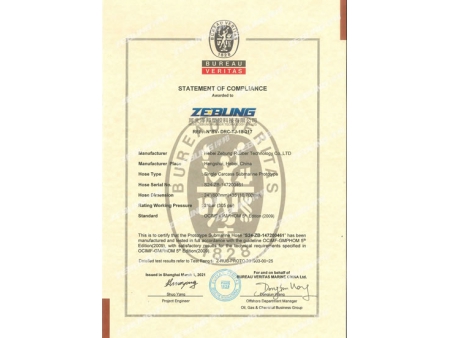

  • BV Test Report (Single Carcass Submarine Prototype-DN300mm)
  • BV Test Report (Single Carcass Submarine Prototype-DN600mm)

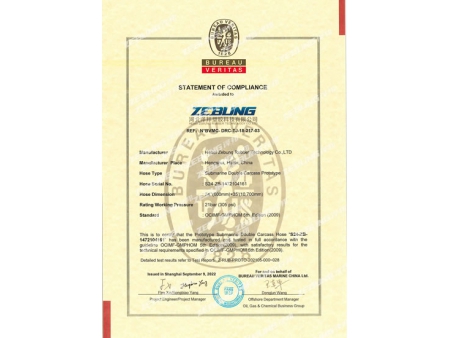

  • BV Test Report (Submarine Double Carcass Prototype-DN600mm)

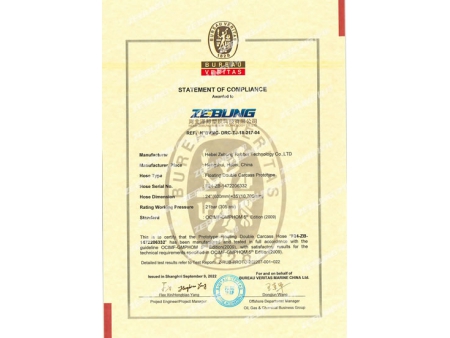

  • BV Test Report (Floating Double Carcass Prototype-DN600mm)
