Full Scale VOC Emission Test Chamber Manufacturer

Full Scale VOC Emission Test Chamber

Request a Quote

View All: http://swtestmachine.com/1-2-full-scale-voc-emission-chamber/index.html

Application of VOC Emission Test Chamber

1. The VOC test chamber provides standard testing environment to determine the VOC emission rate and emission characteristics of interior decoration materials and products. Based on the test report, we can:

Determine the impact of environmental variables on the VOC emission rate and emission characteristics.
Classify the level of products and materials according to the emission characteristics
Develop and adjust indoor air pollution models
Evaluate the IAQ (Indoor Air Quality) according to the pollution data and test report

2. As being a significant means of VOC emission test, the VOC emission chamber finds a wide application in interior decoration, office furniture, engineered wood, carpets, plastics, leather, textile, toys and more.

Engineered wood
Leather
Textile
Plastics
Toys

Advantages of VOC Emission Test Chamber

The coated stainless steel wall improves the adsorption capacity of test chamber for high-boiling-point materials and polar compounds. The recovery rate of tetradecane and 4-phenyl-1-cyclohexene can achieve more than 80%.

The patent is about how to deal with the connection surface between VOC emission chamber and the testing object. The technology helps to reduce the surface adhesive force, largely reducing VOC’s adhesiveness on chamber’s interior wall. In this way, the testing result of samples stored in the sampling bag is more close to the result of testing object in chamber, and the testing precision of emission chamber is largely improved.

Processed stainless steel surface
Unprocessed stainless steel surface

Technical Parameters of Full-Scale VOC Emission Test Chamber

Model

V-3000

V-5000A

V-8000

V-10000

V-12000

V-15000

V-24000

V-30000

V-72000

Environment temperature

5℃ - 35 ℃

Environment humidity

≤90%RH

Environment requirements

With no pollution source, TVOC ≤500ug/m³

Size of climate chamber (W×D×H)mm

1500×1350×1500

1670×1500×2000

2000×1600×2500

250×1600×2500

3000×1600×2500

3200×2000×2500

3000×3200×2500

3000×4000×2500

3000×6000×4000

Size of testing chamber door (H×W)mm

1200×800

1800×900

1900×900

1900×1100

Temperature adjustment range

15℃ - 40 ℃,more than 250 ℃ for high-temperature cleaning

Humidity adjustment range

40 - 60%RH(20 - 30℃)

Pressure

10±5pa

Temperature fluctuation

±0.3 ℃

Temperature deviation

±0.5 ℃

Humidity fluctuation

±2.5%RH

Humidity deviation

Air exchange rate

0.2-2 times/h, ±5% (High air exchange rates are available)

Air velocity

0.1m/s - 0.3m/s

Power supply

AC 380V/50Hz/ Three-phase four-wire/ five-wire

Start-up power

25kw

30kw

36kw

44kw

50kw

55kw

65kw

93kw

Running power

12kw

13kw

14.8kw

17.9kw

20kw

22kw

26kw

38kw

Background concentration of formaldehyde

Less than 15ug/m³, minimum value: 6ug/m³

Recovery rate

More than 80%

Air purification system

Standard configurations

Structure of Full-Scale VOC Emission Test Chamber

The modular structure simplifies the transport work. When the VOC test chamber is installed, seamless technology is used.
Designed with an air jacket, the climate chamber conditions the temperature of testing chamber.
The testing chamber has a sample shelf and no blind spots.
Sampling and testing holes make the testing convenient and easy. Additionally, the holes number can be designed upon request.

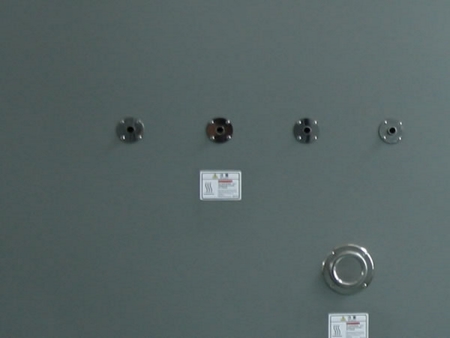

Sampling and testing holes

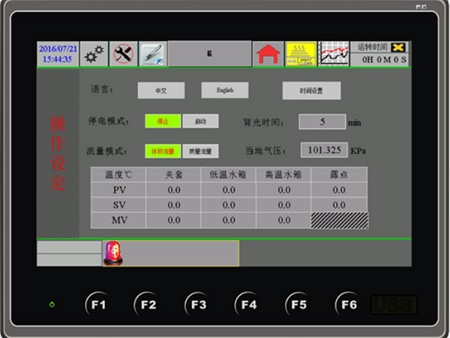

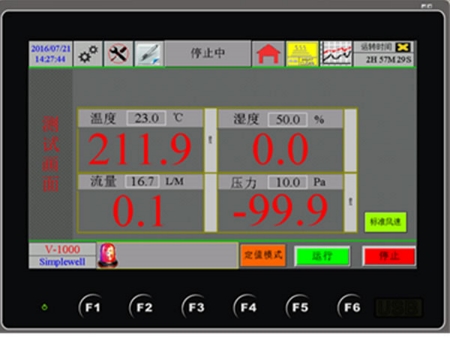

Operation setting
data

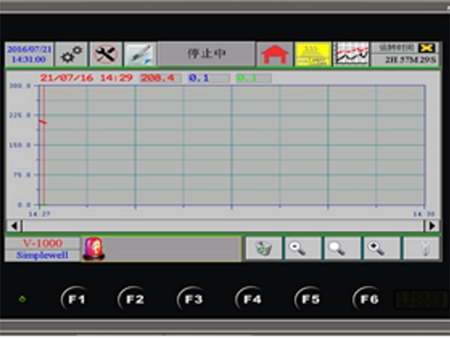

Curve graph

Testing Methods

The air is first processed by compressor to remove solid particles, formaldehyde and volatile organic compounds, and then enters into the test chamber.
The climate chamber is designed with an air jacket for conditioning the temperature in testing chamber.
By adopting dew point method, the humidity of climate chamber is well regulated and controlled.

Manufacture Standards

GB18580-2001	Indoor Decorating and Refurbishing Materials-Limit of Formaldehyde Emission of Wood-Based Panels and Finishing Products
GB18584-2001	Indoor Decorating and Refurbishing Materials-Limit of Harmful Substances of Wood Based Furniture
GB18587-2001	Indoor Decorating and Refurbishing Materials-Limitations of Harmful Substances Emitted From Carpets, Carpet Cushions and Adhesives
ASTM D6007-02	Standard Test Method for Determining Formaldehyde Concentration in Air from Wood Products Using A Small Scale Chamber
ENV717-1	Wood-Based Panels. Determination of Formaldehyde Release. Formaldehyde Emission by the Chamber Method.
EN13419-1	Building Products. Determination of the Emission of Volatile Organic Compounds. Emission Test Chamber Method
HJ 571-2010	Technical Requirement for Environmental Labeling Products Wood Based Panels and Finishing Products
HJ 566-2010	Technical Requirement for Environmental Labeling Products Wooden Toys

Standards for Reference

ASTM D5116-97	Standard Guide for Small-Scale Environmental Chamber Determinations of Organic Emissions from Indoor Materials/Products
ASTM D6330-98	Standard Practice for Determination of Volatile Organic Compounds (Excluding Formaldehyde) Emissions from Wood-Based Panels Using Small Environmental Chambers Under Defined Test Conditions
ASTM D6670-01	Standard Practice for Full-Scale Chamber Determination of Volatile Organic Emissions from Indoor Materials/Products
ASTM E1333-96	Standard Test Method for Determining Formaldehyde Concentrations in Air and Emission Rates from Wood Products Using a Large Chamber
