Air-Cooled Refrigerated Air Dryer - TR Series (TR15-TR200)

Request a Quote

View All: http://airdryers-en.com/1-2-tr15-200-series-air-cooled-refrigerated-air-dryer.html

COMPRESSED AIR DRYERS Energy-saving refrigeration dryers from 17 to 165m³/min or greater upon request

The air-cooled refrigerated air dryer combines advanced plate heat exchanger technology with environmentally responsible design to provide reliable moisture removal from compressed air systems. Ideal for large-scale industrial applications, these dryers ensure consistent performance, energy efficiency, and compliance with international environmental standards.

General Information

Ambient temperature: 0~42℃

Compressed air inlet temperature: 15~65℃

Compressed air pressure: 0.7MPa, Max.1.0MPa (or customizable)

Pressure drop: ≤0.025MPa (at 0.7MPa inlet pressure)

Pressure dew point: 3℃ (35℃ inlet temperature, 25℃ ambient temperature)

Technical Data

Model	Max. air flow rate (m³/min)	Power supply	Input power (kW)	Air pipe connection	Refrigerant	Total weight (kg)	Dimensions (L×W×H)	Evaporator type	Cooling method

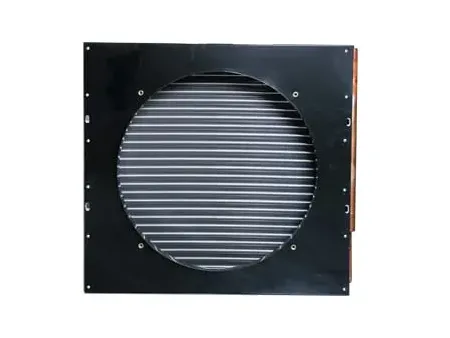

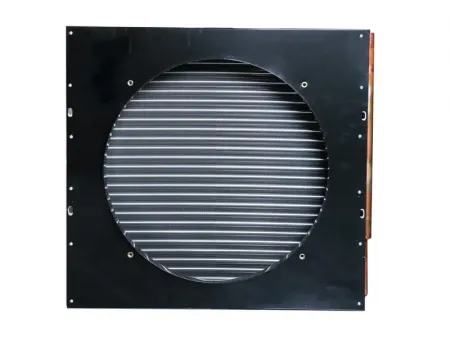

TR-15	17	380V/50Hz	4.25	RC2'	R407C	180	1000×850×1100	Aluminum plate heat exchanger	Air-cooled finned-tube condenser
TR-20	23	380V/50Hz	5.55	RC2-1/2'	R407C	236	1100×900×1160	Aluminum plate heat exchanger	Air-cooled finned-tube condenser
TR-25	27	380V/50Hz	6.58	DN80	R407C	270	1215×950×1230	Aluminum plate heat exchanger	Air-cooled finned-tube condenser
TR-30	33	380V/50Hz	7.2	DN80	R407C	335	1425×1000×1480	Aluminum plate heat exchanger	Air-cooled finned-tube condenser
TR-40	42	380V/50Hz	10.55	DN100	R407C	439	1575×1100×1640	Aluminum plate heat exchanger	Air-cooled finned-tube condenser
TR-50	55	380V/50Hz	12.86	DN100	R407C	580	1630×1150×1760	Aluminum plate heat exchanger	Air-cooled finned-tube condenser
TR-60	65	380V/50Hz	13.1	DN125	R407C	720	1980×1450×1743	Aluminum plate heat exchanger	Air-cooled finned-tube condenser
TR-80	85	380V/50Hz	16.02	DN125	R407C	920	2055×1450×1743	Aluminum plate heat exchanger	Air-cooled finned-tube condenser
TR100	110	380V/50Hz	21.72	DN150	R407C	1150	2460×1800×1960	Aluminum plate heat exchanger	Air-cooled finned-tube condenser
TR120	130	380V/50Hz	26.3	DN150	R407C	1380	2100×2220×2110	Aluminum plate heat exchanger	Air-cooled finned-tube condenser
TR150	165	380V/50Hz	32.28	DN150	R407C	1725	2300×2420×2110	Aluminum plate heat exchanger	Air-cooled finned-tube condenser
TR200↑	Technical data available on request

Intelligent Control and Protection

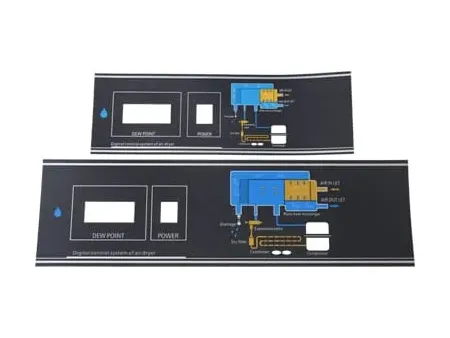

Display Interface: True color touch screen, running status and dew point temperature display

Anti-Freezing Protection: Automatic temperature control/antifreeze solenoid valve

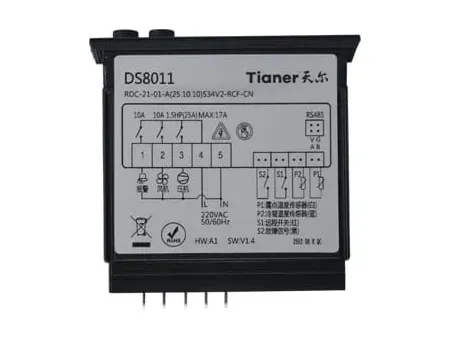

Temperature Control: Automatic control of condensing temperature and dew point temperature

High Voltage Protection: Temperature sensor & pressure sensitive intelligent protection

Low Voltage Protection: Temperature sensor & pressure sensitive intelligent protection

Remote Control: Standard configuration of remote connection dry contact, RS485 expansion interface

Features

Energy-saving design

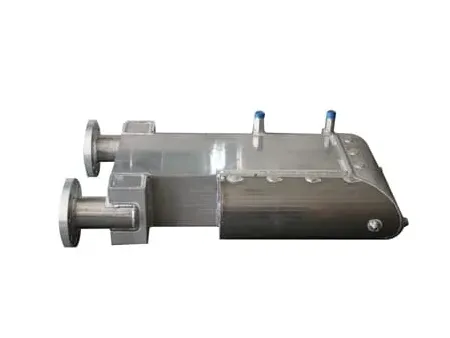

Utilizes an aluminum alloy three-in-one heat exchanger with an enlarged precooler, minimizing process-related refrigeration losses and maximizing thermal recovery.
Enhances compressed air discharge temperature, effectively reducing residual moisture content.

High efficiency

Integrated heat exchanger includes flow guide fins for uniform heat transfer.
Built-in air-water separator with stainless steel mesh filter ensures thorough moisture separation.

Intelligent control

Features multi-point temperature and pressure monitoring, real-time dew point display, and automatic logging of cumulative operating hours.
Equipped with self-diagnostic capabilities that display alarm codes and initiate protective functions as needed.

Environmentally friendly

Compliant with the Montreal Protocol, utilizing R134a and R410A refrigerants with zero ozone depletion potential, fully meeting international environmental regulations.

Stable operation

Standardized with a constant-pressure expansion valve for automatic refrigerant adjustment across diverse operating conditions.
Equipped with dual anti-freeze protection (temperature and pressure) for enhanced energy efficiency and extended equipment lifespan.

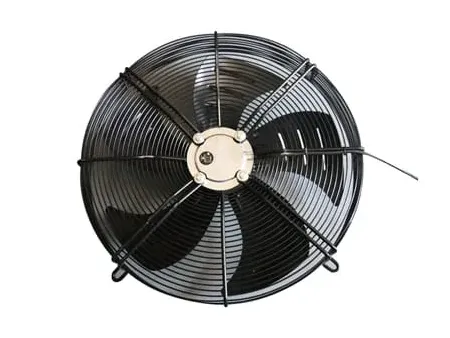

Spare Parts & Assemblies
