350W Lifting Motor, PMDC Brushed Motor ZD109A1
Request a Quote
Your Motion
Application: electric material handling equipment including cranes, industrial trucks, forklifts, AGVs, etc.
Technical Specifications
| Rated Power (W) | 350 |
| Rated Voltage(V) | 24 |
| No-load Revolution (RPM) | 3400±6% |
| No-load Current (A) | ≤3.5 |
| Rated Current (A) | ≤19.0 |
| Rated Torque(N•m) | 1.28 |
| Rated Revolution (RPM) | 2600±6% |
| Working Cycle (min.) | S2-60 |
| Insulation Class | F |
| Protection Level | IP44 |
| Insulation Resistance | >20 MΩ |

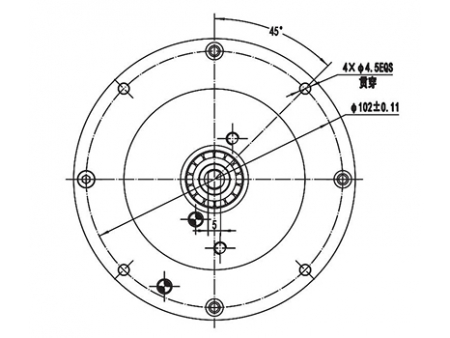

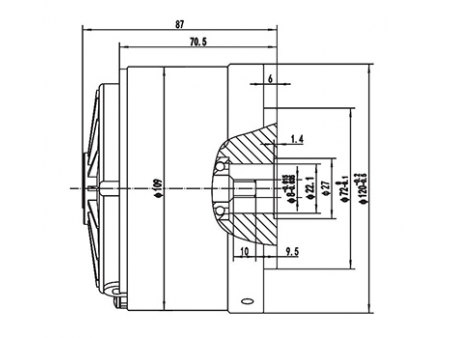

| Length (mm) | 87 |
Note: UNITE MOTOR can customize any PMDC brushed lifting motors according to your requirements and working conditions.
