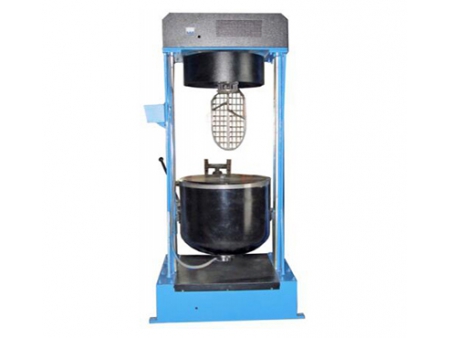

TBTBHCJ-20 Asphalt Mixer

TBTBHCJ-20 asphalt mixer is designed to prepare homogeneous asphaltic mixtures in the laboratory for the sample test.

Technical Parameters

Blending volume	20L
Temperature control range	Room temperature~200℃
Temperature control accuracy	±5℃
Timing range	0~999s
Timing accuracy	±0.1s
Rotation rate of paddle	Complete revolution: 47r/min; autorotation: 76r/min
Blending motor	Alternating current, 380V, 50Hz, 550W, 1400r/min
Lifting motor	Alternating current, 380V, 50Hz, 250W, 1400r/min
Overall dimension	1400mmx750mmx2400mm
Net weight	215kg
Power supply	AC (380±10%)V, 16A, 50Hz (three-phase four-wire with null line)
Ambient temperature	-5℃~ 50℃
Relative humidity	≤80%

Standard accessories

No.	Name	Unit	Qty
1	TBTBHCJ-20 Automatic Mixture Blender	Set	1
2	Discharge shovel	Piece	1
3	Operation manual	Piece	1
4	Quality certificate	Piece	1
5	Repair guarantee	Piece	1

TBTBHCJ-60 Automatic Mixture Blender

TBTBH-CJ60 automatic mixture blender adopts advanced microprocessor controlling technology to present the blending temperature ranging from ambient temperature to 200℃. This automatic mixture blender can automatically control PID parameters and blending time, which is suitable to be used in the laboratory for the sample test.

Technical Parameters

Blending volume	60L
Temperature control range	Room temperature~200℃
Temperature control accuracy	±5℃
Timing range	0~999s
Timing accuracy	±0.1s
Rotation rate of paddle	Rotation speed: 67 r/min Revolution speed: 42 r/min
Blending motor	380V, 50Hz, 2200W, 1400r/min
Lifting motor	380V, 50Hz, 750W, 1400 r/min
Overall dimension	1400mmx750mmx2400mm
Net weight	1100kg
Power supply	AC (380±10%)V, 50Hz, 30A (three-phase four-wire system, with zero line)
Ambient temperature	-5℃~ 50℃
Relative humidity	≤80%

Standard accessories

No.	Name	Unit	Qty
1	TBTBH-F60 Automatic Mixture Blender	Set	1
2	Material sample heater	Set	1
3	Climbing Table	Piece	1
4	Dumper	Set	1
5	Discharging groove	Piece	2
6	Unloading groove	Piece	1
7	Discharge shovel	Piece	1
8	Crank	Piece	1
9	Quantitative measuring cup (2L, 4L)	Piece	Each 1
10	Operation manual	Piece	1
11	Quality certificate	Piece	1
12	Repair guarantee	Piece	1

TBTBH-1 Asphalt Mixer

TBTBH-1 asphalt mixer is an automatic mixing machine for asphalt mixture. It is easy to set the desired mixing time, mixing temperature, and mixing speed.

Technical Parameters

Capacity:	10L, 20L
Control temperature:	room temperature~200℃
Control temperature accuracy:	±2℃
Planetary mixing spped:	revolution 45r/min; rotation 78r/min
Power:	AC 220V, 50Hz, 2000W
