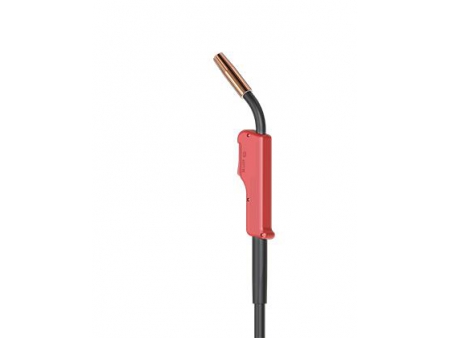

NW-501, MIG/MAG Welding Gun
Request a Quote
Technical Data
Cooling Method: Water-Cooled
Rating:C02: 500A
Rating: Mixed Gas: 450A
Duty Cycle: 100%
Wire Size: 0.8-1.6
Model
| Description | Length | Part Number |
| Welding Gun c/w Euro Fitting | 3M | NW-501E-3 |
| 4M | NW-501E-4 | |
| 5M | NW-501E-5 |

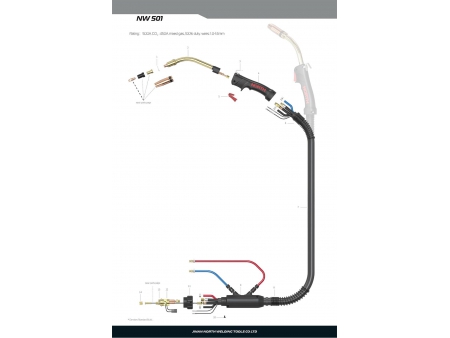

Components
| No. | Part Number | Description |
| 1 | SF5206 | Insulating Washer |
| 2 | SF5245 | Swan Neck 50° |
| 3 | EG0001 | Hanger Hook |
| 4 | EH0101 | Handle |
| 5 | EJ0003 | Trigger |
| 6 | ES0102 | Front Cable Support Spring |
| 7 | SL5030 | Cable Assembly 3m |
| 8 | HDS0202 | Back Cable Support Spring |
| 9 | HDH0202 | Back Handle |
| 10 | Q210406 | Screw M4x6 |
| 11 | EP3001 | Gun Plug Nut |
| 12 | TRU5001 | Euro Gun Plug，water cooled |
| 13 | Q504010 | O-ring 4x1 |
| 14 | EU1011 | Nut M10x1 |
