Large tonnage, good rigidity; the bed is made of integrated cast steel.

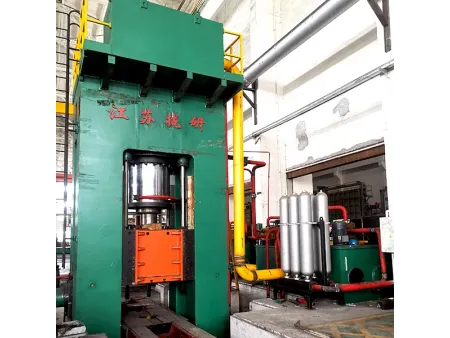

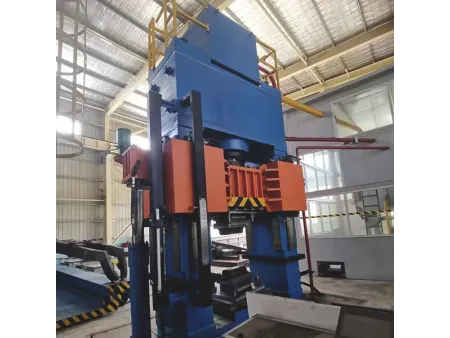

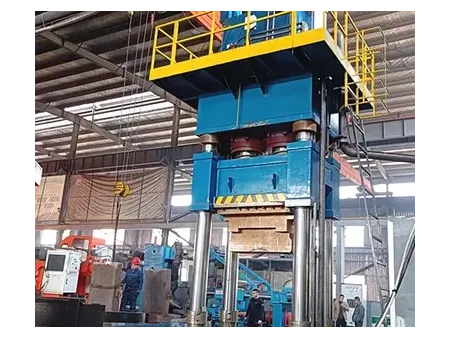

The hydraulic free forging press is equipment that can perform free forging on metal billets without molds. It offers high flexibility, making it particularly suitable for single-piece or small-batch production and the processing of large forgings. The forging pressure range of this product is 630 tons to 12500 tons, capable of meeting various customer forging demands.
Specifications
| Nominal force (ton) | | | | | |
| Distance between columns (mm) | 2000 | 2000 | 2300 | 2300 | 3000 |
| Daylight (mm) | 2800 | 2800 | 3200 | 3200 | 4000 |
| Movable table size (L×W) (mm) | 1500×4000 | 1500×4000 | 1800×6000 | 1800×6000 | 2200×7500 |
| Optimal weight of forged part (ton) | 8 | 12 | 15 | 20 | 35 |
| Clamping force of manipulator (ton) | 10 | 15 | 20 | 25 | 45 |
| Motor power (kW) | 540 | 540 | 720 | 720 | 1080 |
| Rapid descent/return speed (mm/s) | 300 | 300 | 250 | 250 | 200 |
| Working speed (mm/s) | 20~50 | 20~50 | 20~50 | 20~50 | 20~50 |
| Height above floor (mm) | 8000 | 8000 | 10500 | 10500 | 12000 |
