Orbital Forging Press
Request a Quote

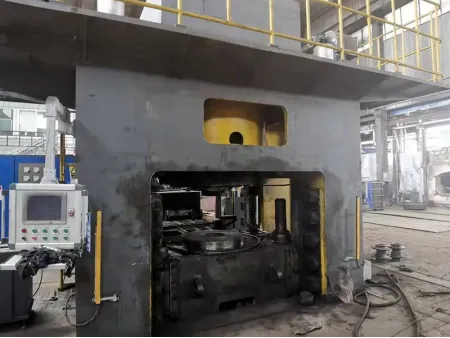

The CNC orbital forging press adopts PLC control with a touchscreen, capable of adjustment and automatic operation modes. The rocking head features reliable water-oil sealing for long lifespan. The machine operates without impact or noise during work. Finished and semi-finished products rolled by this orbital forging press have high precision, smooth surfaces, and accurate forging dimensions.
Specifications
| Working bearing force (t) | 1000 | 1250 | 2000 |
| Max. outside diameter of workpiece (mm) | 500 | 800 | 1200 |
| Max. height of workpiece (mm) | 400 | 600 | 800 |
| Motor power (kW) | 250 | 400 | 700 |
| Production capacity (pcs/batch) | 300 | 180 | 150 |
Applications

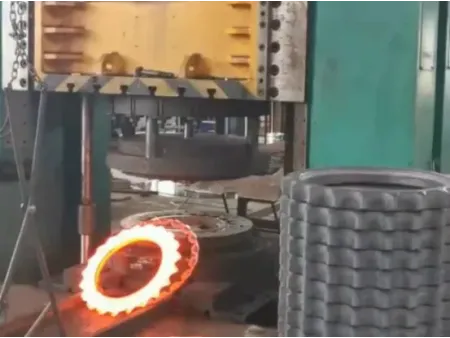

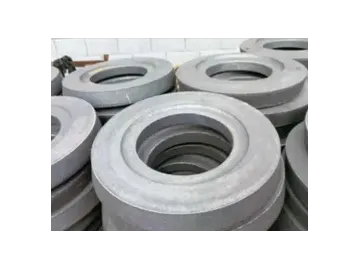

This orbital forging press is suitable for the hot rolling and forming process of disc-shaped parts such as gears and flanges.
Features
- High working efficiency: Compared to previous common old-style orbital forging presses, this equipment improves efficiency by over 50%.
- Environmentally friendly and energy-saving: Features two control systems (uniform and fixed-stroke), preventing resource waste caused by human operational errors and achieving energy savings of approximately 50%.
- Long lifespan of rocking head bearings: Hydraulically controlled, it features hydraulic press and uniform control systems, which protect the load-bearing rolling bearings and significantly extend bearing lifespan.
- Convenient automatic loading/unloading: Top feeding, convenient automatic loading/unloading. The extended guide length of the material rod greatly improves the perpendicularity between the rod and the disc.
- No stalling condition: The equipment truly operates under set pressure and has overload protection, thus preventing the common stalling conditions of the past.
What is the difference between a CNC orbital forging press and a regular ring rolling machine?
What is the difference between a CNC orbital forging press and a regular ring rolling machine?
The rolling wheel of a CNC orbital forging press can oscillate around its central axis, thereby expanding the forming area and optimizing force application. It can achieve control of more complex cross-sections (such as V-shaped, T-shaped sections), resulting in more uniform rolling and higher forming precision.
How to choose between the separated and vertical structures of a CNC orbital forging press?
How to choose between the separated and vertical structures of a CNC orbital forging press?
Choose the separated type for large sizes with multiple variations, and the vertical type for small sizes with high precision. Choose the vertical type for standardization, and the separated type for customization.
How about the working efficiency and energy-saving efficiency of your CNC orbital forging press?
How about the working efficiency and energy-saving efficiency of your CNC orbital forging press?
From round bar clamping to roller propulsion and rocking head oscillation, all are hydraulically adjusted. Compared to previous common old-style orbital forging presses, efficiency is improved by over 50%. With uniform and fixed-stroke control systems, it can save approximately 50% energy.
