20kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)
LCF20A
Intelligent information auto focus laser cutting head for processing metal tubes and profiles with power ratings of up to 20kW

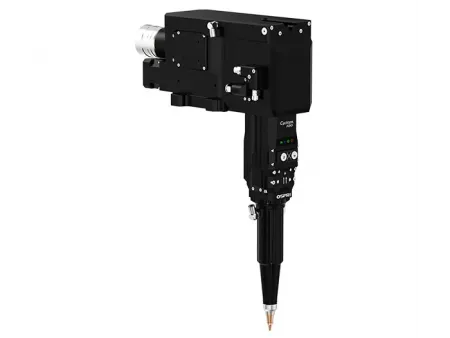

Front laser interface/connector, figure 1 with mounting bracket, figure 2 without mounting bracket

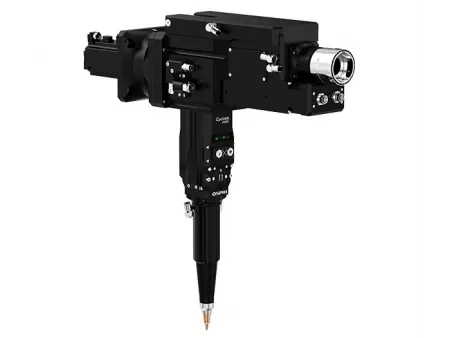

Rear laser interface/connector, figure 1 without mounting bracket, figure 2 with mounting bracket
This high-power right angle fiber laser cutting head is designed for processing metal tubes and profiles with power ratings of up to 20kW. Equipped with an extended laser nozzle sensor, it handles a wide range of structural profiles with ease. The built-in collision protection ensures rapid recovery after impact, while signal enhancement enables timely feedback and stable cutting performance. Its optimized design reduces downtime and simplifies maintenance, making it ideal for demanding industrial applications.
| Type | Auto Focus Fiber Laser Cutting Head |
| Model | LCF20A1/LCF20A2 |
| Interface Type | Q , QD, LOE3.1, LOE3.2 |
| Wavelength | 1064±10nm |
| Rated Power | ≤20kW |
| Focal Length | 250mm/300mm |
| Collimation Length | 100mm |
| Focusing Range | -50mm~ 50mm / -70mm~ 70mm |
| Centering Adjustment Range | ±1.5mm |
| Focusing Speed | 400mm/s |
| Repeated Positioning Accuracy of Focusing Axis | 0.05mm |
| A-axis Movement Range | ±45° |
| Rated Rotation Speed | 30r/min |
| Angular Acceleration | 240rad/s² |
| Positioning Accuracy | 1arcmin |
| Auxiliary Gas Pressure | ≤3MPa |
| Weight | 10kg |
Designed for metal tube and profile cutting, this high power laser cutting head supports round tubes, square tubes, and H-beams. It is suitable for processing carbon steel, stainless steel, and other common structural materials.
- 8mm carbon steel
- 5mm angle iron
- 6mm carbon steel
500 mm bevel cutting capability ensures smooth processing of large structural profiles
Built-in laser nozzle sensor for non-destructive collision protection, allowing rapid recovery and uninterrupted production
Equipped with an integrated capacitance amplifier for fast response and low interference, ensuring precise and stable cutting performance
Provides early warnings for leakage or low pressure of air, ensuring continuous processing and preventing downtime
Seamless connection with CNC systems for synchronized control and integrated machine performance
| Collimating protective lens | PMD32T2DS |
| Focusing protective lens | PMD34T5DS |
| Cutting protective lens | PMD34T5DS |
| Collimating lens | DF100D37DS |
| Focusing lens | DF200D37DS，SF250D37DS，SF300D37DS |
| Seal ring | 38.6×30.5×3.8 |
| Ceramic ring | FC-18 |
| Nozzle | FSN21 Series |
