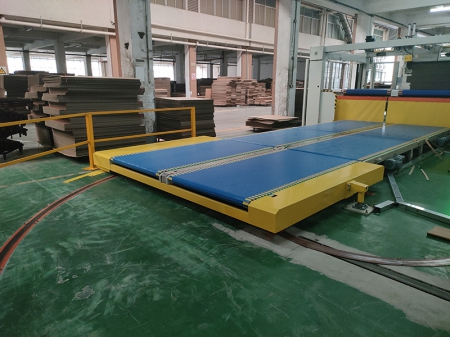

Right-angle transfer cart is a dynamic turning device composed of a high-strength mobile chassis and a modular belt or roller conveyor, designed for multi-directional connection in corrugated board conveying systems. With independent, collaborative control of 0–180° chassis rotation and conveyor continuous operation, the transfer cart effectively handles direction changes between turning processes without requiring orientation adjustments or causing stagnation. It precisely docks with upstream and downstream conveyors, synchronously completing turns and transfers, and is widely used at logistics hubs where cardboard sorting and space optimization are required.

• Independent Dual-Drive System: The turning mechanism and conveyor drive are controlled independently, allowing rotation and conveying to run simultaneously.
• Full-Range Angle Adaptability: Stepless 0–180° rotation supports forward, reverse, or lateral multi-angle docking and accommodates complex layouts such as straight, L-shaped, and U-shaped lines.
• Intelligent Linked Control: PLC central control system combined with variable-frequency speed control enables real-time data interaction with the main line and automatically matches upstream/downstream conveyor speeds.

• Chassis material: 10#/8# channel steel frame polyurethane-coated wheels
• Conveyor type: Modular belt/roller (optional)
• Rotation angle: 0°–180° (electric precision control)
• Conveying speed: 0–32 m/min (variable-frequency speed control)
• Dimensions: 2500 × 2500 mm to 3000 × 3600 mm (customizable)
• Control mode: PLC automatic control
• Safety protection: 1200H safety guardrail emergency stop button
• Power supply standard: 380 V/50 Hz (customizable)
