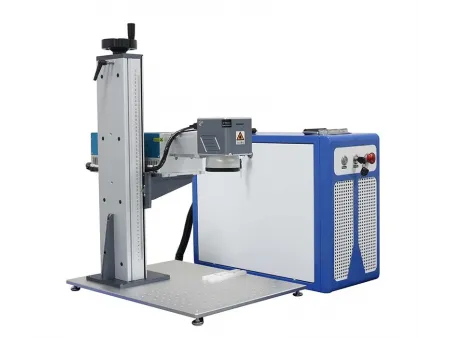

Split UV Laser Marking Machine
- Laser wavelength 355nm
- Marking range ≤300×300mm
- Beam quality M²<1.2~1.5
- Max. line speed 7000mm/s
The split UV laser marking machine features a split-type design, separating the laser source from the marking head, which significantly enhances equipment deployment flexibility. It adapts well to production lines, mobile workstations, and confined spaces. Combining 355nm UV cold processing technology, it achieves an ultra-fine spot diameter of ≤0.017mm and a heat-affected zone of <1μm, enabling perfectly precise and non-damaging marking on materials like plastics, glass, and metal coatings. It supports dynamic serial numbers, invisible QR codes, and complex graphics, integrating smart software like EzCAD to meet diverse industry demands. This machine is an efficiency innovation tool for fields such as electronic components, medical packaging, and luxury goods anti-counterfeiting.
UV laser marking machines leverage cold processing, high precision, and multi-material adaptability as core competencies, excelling particularly in handling heat-sensitive, highly reflective, or materials requiring ultra-fine processing. They can achieve sub-micron level non-thermal damage engraving on surfaces including metal coatings, polymers: (e.g., ABS, PVC, HDPE, and other plastics), glass, ceramics and more.

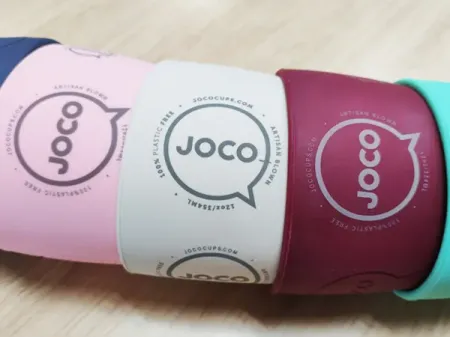

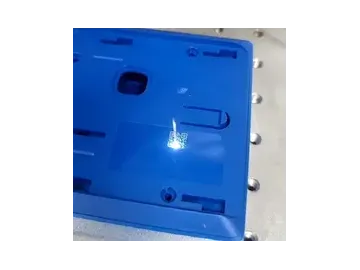

- Plastic part laser marking

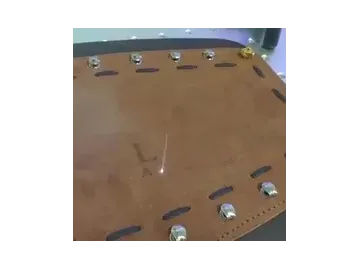

- Leather laser engraving
- PCB laser marking
- PU hose laser marking
- Silicone laser marking
- Glass bottle laser marking
- PET white bottle laser marking
- PC card laser marking
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser power 3W, 5W, 10W
- Laser type UV laser
- Laser wavelength 355nm
- Marking range ≤300×300mm
- Beam quality M²<1.2~1.5
- Max. line speed 7000mm/s
- Min. character size 0.05mm
- Min. line width 0.01mm
- Cooling method water cooling
- Power supply 220V/50Hz, 110V/60Hz
- Operating temperature 10℃~35℃ (Operating outside this range may affect equipment performance and lifespan)
- Machine dimensions 400×550×650mm (optical path section), 210×445×400mm (cabinet), 290×540×470mm (chiller)
- Package size 800×700×1030mm
- Machine weight 81kg
- Package weight 92kg
- 3W laser powerWorking area ≤110×110mm for plastic products
- 5W laser powerWorking area ≤110×110mm for glass and ceramic products
- 10W laser powerWorking area ≤300×300mm for wider applications

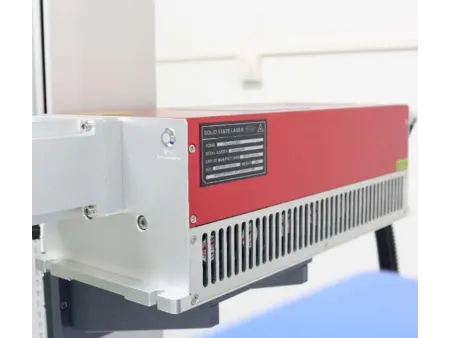

Laser source
We provide renowned domestic and international brand laser sources for our equipment, such as DXT, GL, and Optowave. These sources offer high pump conversion efficiency, low power consumption, and excellent beam quality. Utilizing third-order intracavity frequency doubling technology, the wavelength is shorter than that of fiber (1064nm) and CO₂ (10.64μm) lasers, resulting in higher photon energy. This allows for direct breaking of material molecular chains rather than heating, achieving a "photo-etching" effect with a minimal heat-affected zone (<1μm), thereby preventing material deformation or scorching.

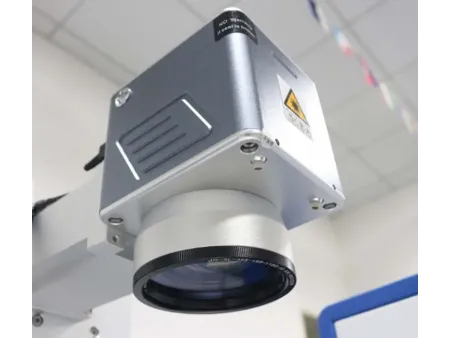

Galvo scanner
Features a high scanning speed of 7000mm/s, high stability, and is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.
F-theta lens
Equipped with a 355nm wavelength F-theta lens, primarily used for uv laser marking machines. Due to its shorter wavelength, it is suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.
Control card
Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.
Laptop
Utilizes a major brand Lenovo laptop, equipped with Windows 10 system and a 14-inch display, ensuring smoother operation of the entire laser equipment.
Column
Features electric lifting and lowering, adapting to marking workpieces of various heights without manual adjustment, significantly improving overall work efficiency.
Laser safety warning labels
Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.
- Fume Extractor
- F-theta lens
- Cylindrical rotary clamp fixture
- Roller rotary axis
- UV laser

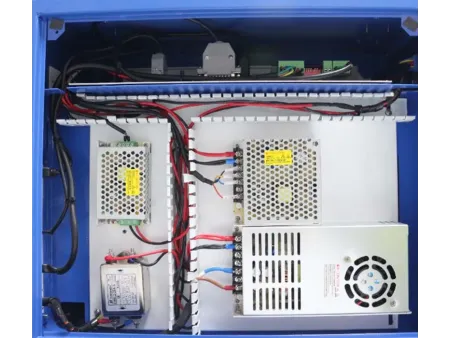

- Split laser control cabinet
- Work panel
- Galvo scanner
- F-theta lens
- Control card
- Laser power supply
- Laptop
- Power cord
- Water chiller
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
