ER 2319 (AlCu6MnZrTi) Aluminium Welding Wire

Request a Quote

View All: http://weldingwire-en.com/1-3-aluminium-welding-wire-er-2319.html

Welding Consumables

Aluminium-copper filler metal for MIG and TIG welding of 2000 series aluminium alloys

Chemical Designation: AlCu6MnZrTi
Standard: AWS A5.10, GB/T10858-2023
Tensile Strength: ≥240 MPa

Chemical Composition (%)

Others

Each

Total

≤0.20

≤0.30

5.8-6.8

0.20-0.40

≤0.02

≤0.10

0.05-0.15

0.10-0.20

0.10-0.25

Rest

≤0.0003

≤0.05

≤0.15

Features

Suitable for welding 2xxx series aluminium alloys, especially when higher joint strength is required
Weld metal offers greater strength and ductility than fillers from the 4xxx series
Delivers strong resistance to stress corrosion cracking, even in applications involving elevated temperatures

Available Sizes

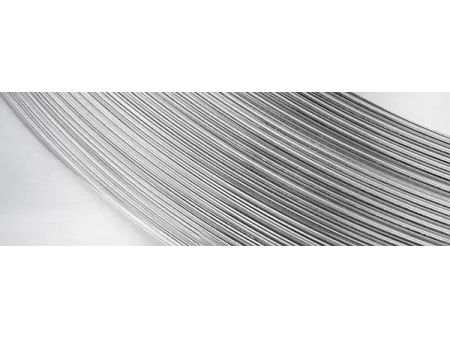

Welding wire: 0.8/1.0/1.2/1.6/2.0/2.4/3.0/3.2/4.0/5.0/6.0mm
Spool: D300 (9kg), D270 (7kg), D200 (2kg), D100 (0.5kg)

Applications

ER2319 is ideal for applications that require high strength and good corrosion resistance, including:

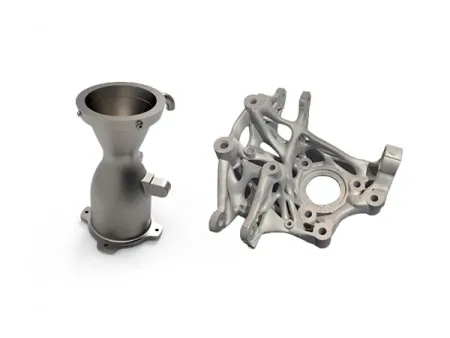

Aerospace: Used for welding structural components such as fuselage sections, wings, and fuel tanks
Automotive: Suitable for aluminium body panels, chassis parts, and engine components
Industrial equipment: Commonly used in chemical processing units and heat exchangers that demand both strength and durability

Packaging

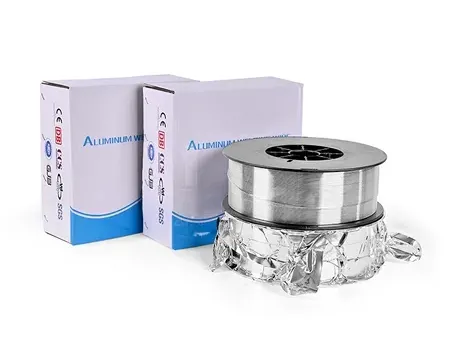

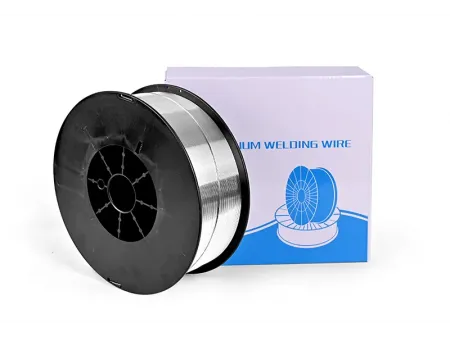

Spooled welding wire

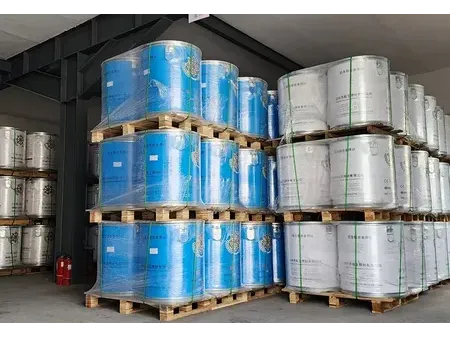

Drum packaged welding wire

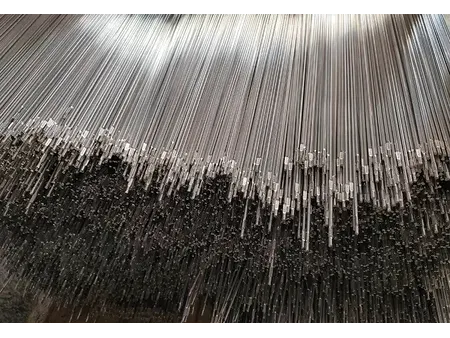

Straight welding wire

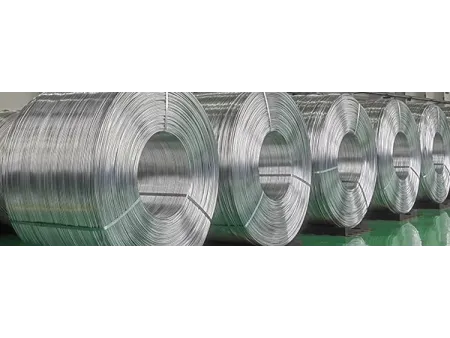

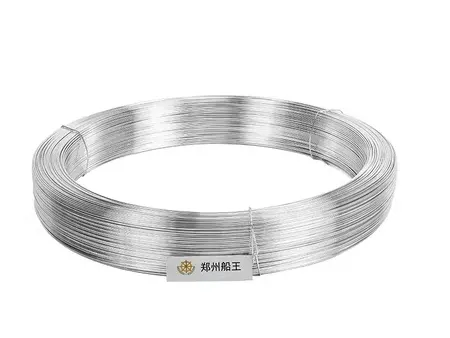

Coiled welding wire

MIG wire diameter: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
Package: D300 (9kg/spool), D270 (7kg/spool)

MIG wire diameter: 1.2mm, 1.6mm
Package: drum D660 (100kg/drum)

TIG wire diameter: 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Package: 1000mm length (10kg/box)

TIG wire diameter: 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 5.0mm, 6.0mm
Coil inner diameter: D450mm, D300mm
Package: 10-17kg/coil

Recommended Welding Method

Suitable for both MIG and TIG welding processes. AC TIG welding with pure argon shielding gas is recommended to ensure arc stability and weld quality. Before starting, clean the part to be welded thoroughly to remove any oil, dust, or surface oxidation. Moisture on the base metal or filler wire should be avoided to prevent weld defects.
