ST978H Log Handling Loader

ST978H Log Handling Loader
ST978H Log Handling Loader
ST978H Log Handling Loader
Request a Quote

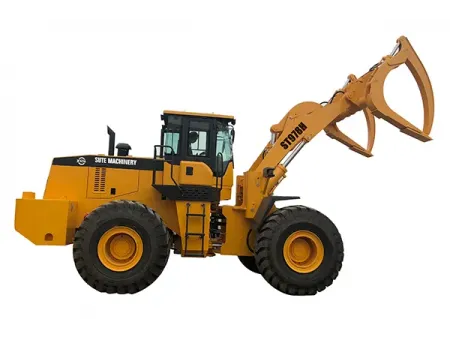

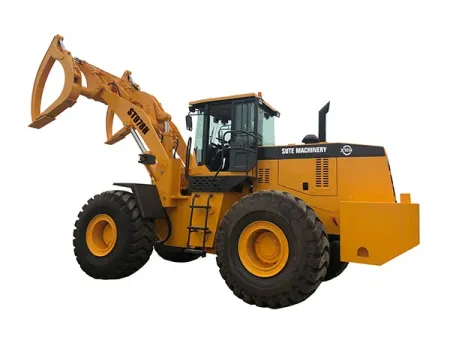

Wheel loader with log forks for wood log handling

  • Operating weight
    22.0T
  • Rated load
    12,000~18,000kg
  • Rated engine power
    199kW
  • Rated rotate speed
    2200r/min
Specifications
Operating weight 22.0T
Rated load 12,000~18,000kg
Engine model WEICHAI WD10G270E201
Rated engine power 199kW
Rated rotate speed 2200r/min
Max. torque 920N.m
Max. traction force ≥185kN
Breakout force ≥200kN
Driving speed
Forward Ⅰ 0-8.5km/h
Forward Ⅱ 0-16.5km/h
Forward Ⅲ 0-25km/h
Forward IV 0-42km/h
Reverse Ⅰ 0-8.5km/h
Reverse Ⅱ 0-16km/h
Gradeability 28°
Overall length 8400mm
Overall width 3100mm
Overall height 3560mm
Bucket width 3170mm
Wheelbase 3550mm
Track width 2360mm
Min. ground clearance 470mm
Max. dumping height 3900mm
Max. dumping reach 1290mm
Transmission Countershaft
Fuel tank capacity 230L
Hydraulic tank capacity 270L
Raise cycle time ≤6.8s
Total cycle time ≤12.5s
Tire type 26.5-25

Note:
With ongoing technological advancements, product specifications and configurations are subject to change without prior notice. In case of any uncertainty, the final confirmation provided by our international trade sales team shall prevail.

Features
  • Powerful engine
    Equipped with a Weichai WD10G270E201 199 kW diesel engine, delivering strong torque at low speeds for energy efficiency and reduced emissions. Optional engine configurations include Cummins, Steyr, and Shanghai Diesel, meeting different working requirements.
  • Transmission and torque converter
    Fitted with a fixed-shaft Beilian transmission and Shantui torque converter, ensuring efficient power delivery, smooth operation, and excellent overload adaptability while maintaining easy servicing.
  • Cabin
    The elevated cab design provides a clear forward view over the grapple arms, enhancing operator accuracy, visibility, and overall safety during log handling operations.
