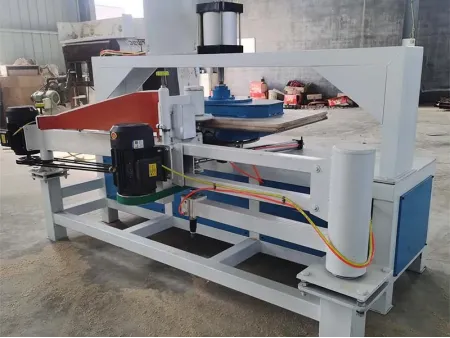

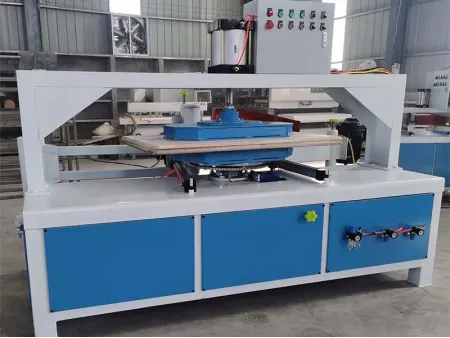

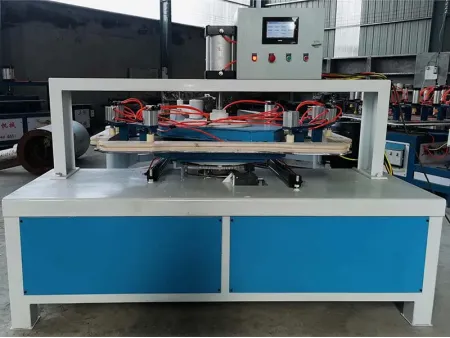

Wood Table Profiling Copy Shaper and Sander
//Woodworking Machinery
Circular copy shaper for contouring and edge sanding of solid wood table tops with circular, rectangular, square and irregular shapes
- Machine dimensions (L×W×H)2400×1300×1700mm
- Machine weight1300kg
- Motor 14kW, 7800r/min
- Motor 24kW, 7500r/min
Wood table top copy shapers handle contour shaping and sanding of solid wood tabletops in round, square, rectangular, elliptical, and irregular outlines. They mill the outer edge precisely according to design specifications, achieving smooth curves and complex shapes such as wave or oval forms. The integrated sanding function refines the edges by removing tool marks and burrs, ensuring a polished finish that’s ready for painting or coating. These machines support both standard and custom designs, making them ideal for a diverse range of table styles and product lines.
- Machine dimensions (L×W×H)2400×1300×1700mm
- Machine weight1300kg
- Motor 14kW, 7800r/min
- Motor 24kW, 7500r/min
- Working sizeWood diameter 600-1700mm
Used for shaping and sanding the contours of wooden tabletops in custom or mass production. Supports circular, square, rectangular, and creatively curved forms. Customization is available upon request to accommodate unique table design needs.
