Wood processing machine incorporating planer and wide belt sander in a single machine

Woodworking Machinery

Working width20-1300mm
Max. transverse angle30°
Planner motor power22kW
Feeding motor power4kW

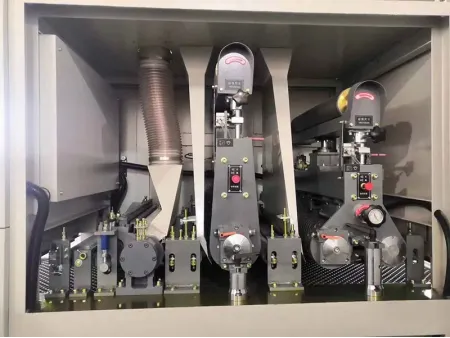

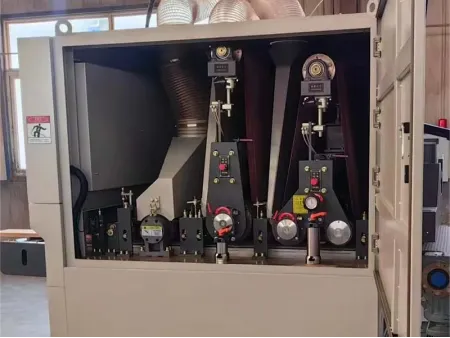

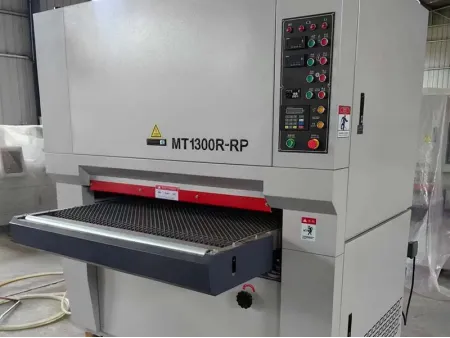

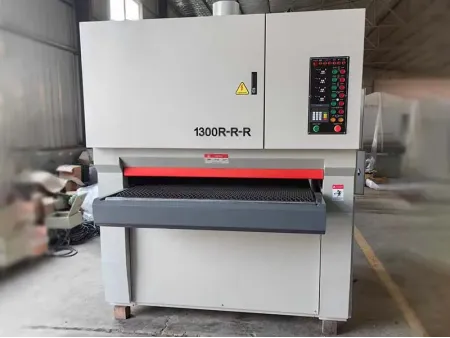

The planer sander integrates planing and sanding operations into a single machine, designed to efficiently process wood panels with uneven thickness while refining the surface to a smooth, clean finish. It removes cutter marks left from previous processing steps and delivers a high-quality surface ready for coating or assembly. This all-in-one solution improves production efficiency and surface quality in wood furniture and panel manufacturing.

Specifications

Working width 20-1300mm
Working thickness 4-150mm
Working length (per timber) >580mm
Sanding belt size (L×W) 2200×1300mm
Max. transverse angle 30°
Planner motor power 22kW
First sanding belt motor power 30kW
Second sanding belt motor power 22kW
Feeding motor power 4kW
Up and down motor power 0.37kW
Brush motor power 0.37kW
Feeding speed 0-19m/min

Features

Helical cutterhead
The spiral blade arrangement enables sequential, angled cutting, reducing cutting force and extending tool life.
Multi-layer safety protection
Includes one-way feed rollers, segmented pressure controls, and a heavy-duty anti-kickback device to ensure operator safety.
High adjustability
Variable frequency feed control and adjustable sanding head height and depth provide flexibility to accommodate different processing requirements.
