Wide Belt Sander

Request a Quote

View All: http://woodmachines-en.com/1-9-2-wide-belt-sander.html

//Woodworking Machinery

Double-sided sanding machine for removing imperfections from top and bottom sides of wood workpieces

Woodworking Machinery

Working width20-1300mm
Max. transverse angle30°
Feeding motor power4kW
Brush motor power0.37kW

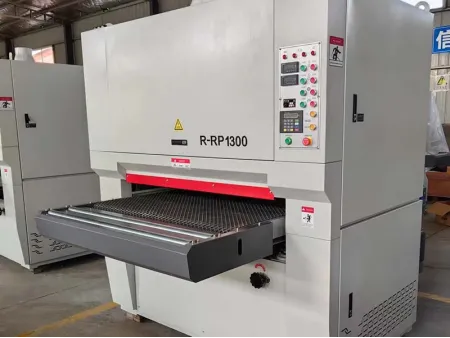

The wide belt sander is a double-sided sanding system can efficiently remove surface irregularities or imperfections from top and bottom sides of the wood panels. It prepares the material for downstream processes such as painting, veneering, or lamination. With a rugged construction and advanced sanding system, the sanding machine ensures high surface quality and production consistency in large-scale wood processing operations.

Specifications

Working width 20-1300mm
Working thickness 3-100mm
Working length (per timber) >580mm
Sanding belt size (L×W) 2200×1330mm
Max. transverse angle 30°
First sanding belt motor power 30kW
Second sanding belt motor power 20kW
Feeding motor power 4kW
Up and down motor power 0.37kW
Brush motor power 0.37kW
Feeding speed 5-25m/min

Features

Heavy-duty frame
Constructed from high-strength steel to withstand intense sanding pressure and prolonged high-speed operation. The rigid frame minimizes vibration and noise while ensuring long-term stability.

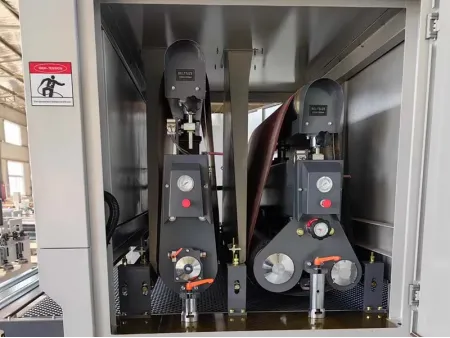

Advanced sanding system
Equipped with multiple sanding rollers and customizable abrasive belt configurations to perform coarse and fine sanding in a single pass.
High automation
Features automatic feeding and discharge systems, automatic belt tensioning, and adjustable sanding pressure. These functions reduce manual intervention and enhance both efficiency and output consistency.
