Four-Sided Belt Sander

Request a Quote

View All: http://woodmachines-en.com/1-9-3-four-sided-belt-sander.html

//Woodworking Machinery

Wood sanding machine for sanding four surfaces of wood workpiece in one pass

Woodworking Machinery

Working width140mm
Min. working length300mm
Rated voltage380V
Rotation speed1400rpm

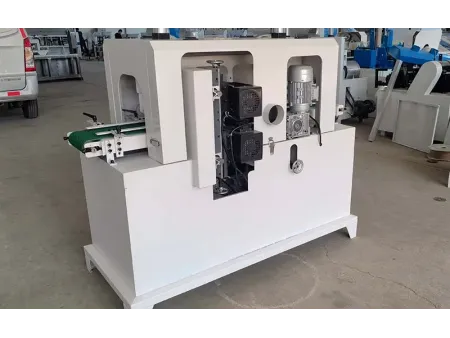

The four-sided belt sander is used to sand the top, bottom, and both other sides of a wood workpiece in one operation. It ensures uniform surface finishing through precise control and stable belt motion. This machine is ideal for high-volume production environments that require consistent surface quality on all four sides of timber or wooden components.

Specifications

Main motor power 2.2kW
Working width 140mm
Min. working length 300mm
Max. working thickness 80mm
Air pressure 0.6/0.8
Rated voltage 380V
Number of axis 4/6/8/10
Rotation speed 1400rpm
Feeding speed Average/regulated

Features

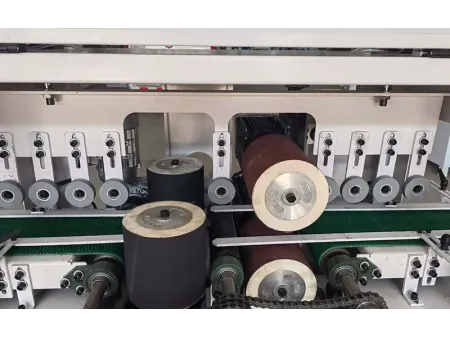

Multi-belt design
Equipped with multiple sanding belts that can be configured with varying grits depending on material type, hardness, and desired finish. Allows for both coarse and fine sanding in a single cycle.
Highly adjustable
Belt tension, sanding pressure, and feed speed are all fully adjustable, enabling compatibility with a wide range of wood sizes, profiles, and processing requirements.
High automation
Features automatic feeding and discharge systems, along with sanding belt wear detection and replacement alerts, reducing manual labor and enhancing process stability and efficiency.
