Four-Sided Planer
Request a Quote
//Woodworking Machinery
Wood planer machine used to plane and smooth all four surfaces of wood
Woodworking Machinery
- Working width20-150mm
- Working thickness8-100mm
- Machine dimensions (L×W×H)2550×1200×1600 mm
- Machine weight1.3T

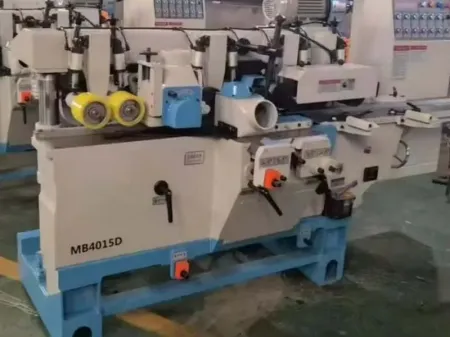

The four-sided planer can perform complete surface processing on all four sides of a wood workpiece in a single pass. It ensures uniform flatness, precise sizing, and a smooth finish across the top, bottom, and both side faces. This wood planing machine is essential for preparing timber with consistent dimensions and surface quality, improving efficiency in downstream processes such as profiling, assembly, or finishing.
Applications
Used for planing and sanding of solid wood components to achieve smooth, dimensionally accurate surfaces on all sides.
Specifications
- Working width 20-150mm
- Working thickness 8-100mm
- Feeding speed 12-28m/min
- Planing spindle speed 6500r/min
- Feeding motor power 2.2kW
- Beam lifting motor power 0.55kW
- Total power 14.95kW
- Motor power bottom 3kW, upper 4kW, right 2.2kW, left 3kW
- Machine dimensions (L×W×H) 2550×1200×1600 mm
- Machine weight 1.3T
