Multifunctional Rotary Copy Shaper and Sander

Request a Quote

View All: http://woodmachines-en.com/1-5-3-multifunctional-rotary-copy-shaper-and-sander.html

//Woodworking Machinery

Wood processing machine with rotary table for copy shaping and sanding of various complex wood workpieces

Woodworking Machinery

Machine dimensions (L×W×H)1500×1600×1200mm
Machine weight800kg
Motor 14kW, 7500r/min
Motor 24kW, 7500r/min

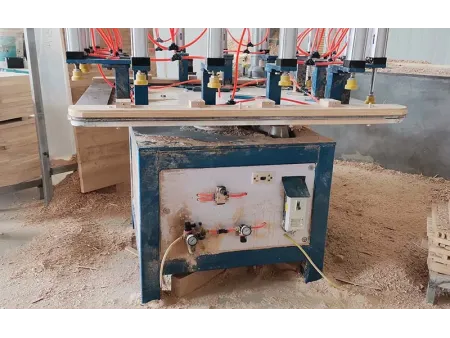

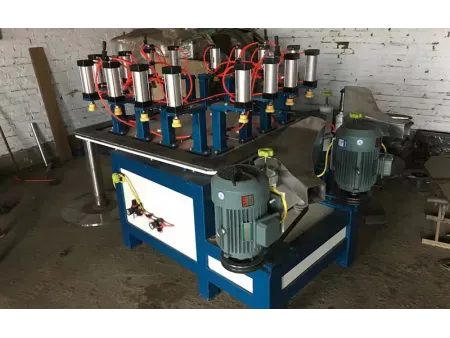

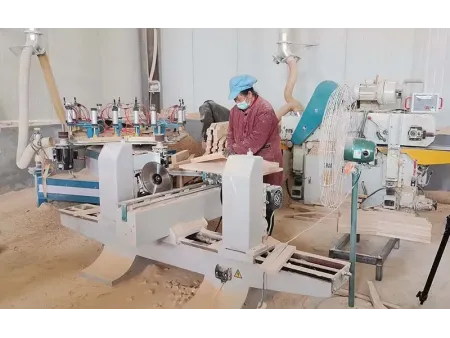

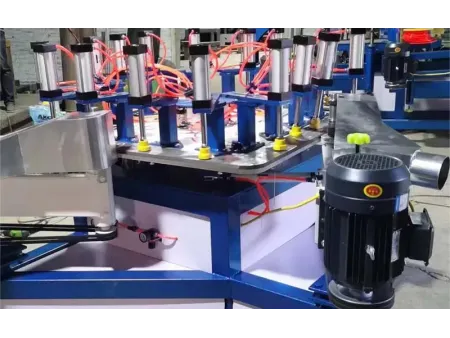

This multifunctional copy shaper is equipped with a rotary indexing table and profiling system that enables high-precision shaping and sanding of wood components with complex curves, arcs, and irregular contours. It is particularly suited for batch production of parts with identical or similar designs, such as furniture legs, decorative panels, and other curved or ornamental elements. The rotary design ensures consistent output and dimensional accuracy, even during continuous, high-throughput operations.

Specifications

Machine dimensions (L×W×H)1500×1600×1200mm
Machine weight800kg
Motor 14kW, 7500r/min
Motor 24kW, 7500r/min
Motor 32.2kW, 2400r/min
Rotary work tableFrequency control
Working sizeWood diameter 300-750mm

Advantages

Easy operating. Shaping, milling and sanding in one time.
4 tables and 6 tables make high-efficiency.

Simple to operate as shaping, milling, and sanding are completed in a single cycle with one-button control.
Available in 4-station and 6- station rotary table models to increase productivity and meet different capacity needs.
