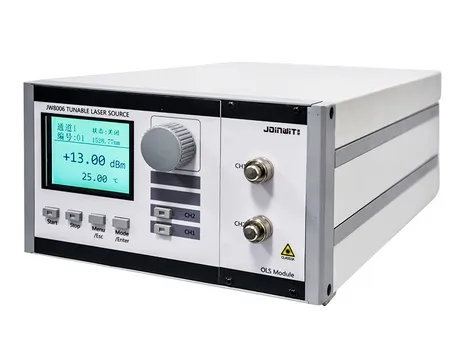

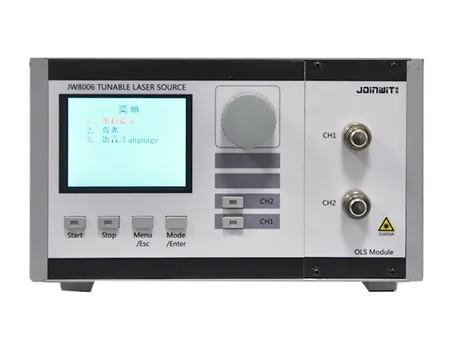

Benchtop Tunable Laser Source
Request a Quote
JW8006
This tunable laser source features high-performance components imported from international suppliers, offering high output optical power (10mW) and a narrow linewidth (1MHz). It provides continuous laser output with up to 89 ITU-T standard wavelengths in the C-band (50GHz spacing) and 64 wavelengths in the L-band. It integrates laser and control elements within its circuitry, enabling wavelength tuning and adjustable power settings via the RS232 protocol interface. This laser source is ideal for use in 40G/100G long-distance high-speed optical fiber communication systems and for testing C-band DWDM passive optical components and photodetectors. It is also suitable for DWDM system R&D, fiber lasers, fiber links, and optical device testing.
Features
- Supports up to 89 wavelengths
- Wide tuning range for flexible applications
- High optical power and stability
- Modular benchtop design for ease of use
Specifications
| Output Power | C-band: ≤20mW L-band: ≤10mW | Power Stability | 0.05dB (room temperature, single wavelength) 0.5dB (room temperature, full wavelength) |
| Wavelength Tuning Range | C-band: 1528.77/1563.86 (C17 C61) L-band: 1554.94/1607.47 (C28 L65) |
| Number of Channel | C-band: 89 channels L-band: 64 channels |
| Channel Spacing | C-band: 50GHz L-band: 100GHz |
| Optical Connector Type | FC/PC (or APC) |

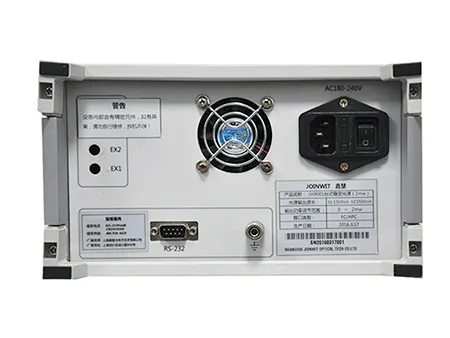

| Communication Interface | RS232 | Display | 3.5 inch TFT color screen |
| Operating Temperature | -5 to 40℃ |
| Storage Temperature | -25 to 70℃ |
| Power Supply | AC 220V 50Hz |
| Dimensions | 3U×235×380mm |
