NLS-100-CL Tunable Narrow Linewidth Laser
Digital Laser Components
Integration of single-frequency PM fiber laser, large-bandwidth electro-optic modulator, driver and control circuit module

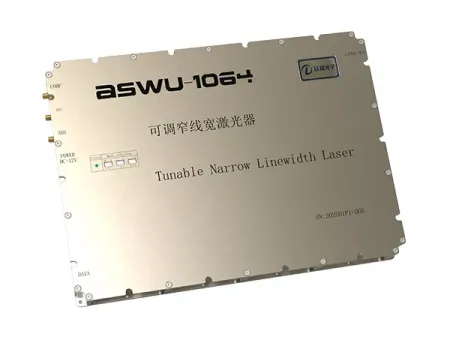

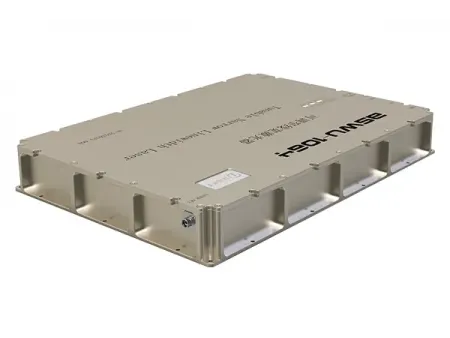

NLS-100-CL tunable narrow linewidth laser is a high-performance laser seed source designed for high-power laser systems. It integrates a single-frequency polarization-maintaining (PM) fiber laser, a large-bandwidth electro-optic phase modulator, and driver and control circuit modules. By applying a specific RF signal to the seed light via the electro-optic modulator, the NLS-100-CL tunable narrow linewidth laser successfully expands the spectral width from the kHz range to 100GHz. This effectively suppresses the Stimulated Brillouin Scattering (SBS) effect that can occur during high-power amplification, thereby boosting the output power.
Featuring a compact, integrated modular design, the tunable narrow linewidth laser offers high environmental adaptability. Its flexible software architecture supports real-time operational logging and fault diagnosis, and enables fine spectral tuning to optimize laser power output. The advanced phase modulation and spectrum optimization technology, combined with a high-speed FPGA DAC digital waveform generator and RF power amplification module, ensures precise control over the laser spectral signal. The NLS-100-CL is also suitable for coherent laser radar, high-speed phase modulation, and other high-energy laser applications.
| Application | |
| Narrow linewidth fiber amplifiers | Stimulated Brillouin Scattering (SBS) suppression |
| Coherent laser detection | High-speed,large-bandwidth laser phase modulation |
| High-energy laser phased array/coherent synthesis/light field control | Provides electrical delay compensation for laser array optical path differences |
| Coherent laser radar/communication/sensing | Enables large-bandwidth laser phase encoding |
| Output Laser Characteristics | |
| Modulation mode | Arbitrary waveform |
| Operating wavelength (nm) | 1064 |
| Spectral linewidth (GHz) | 10-100 (adjustable) |
| Output power (mW) | >20 |
| Beam quality (M²) | <1.2 |
| Extinction ratio | >20dB |
| System Interfaces | |
| Output interface | FC/APC |
| Output fiber | PM980 |
| Input interface | SMA |
| Number of input interfaces | 3 |
| Control interface | RJ45 |
| Other Specifications | |
| Dimensions (L×W×H) (mm) | 360×260×48 |
| Supply voltage (V) | 28 |
| Power supply interface | M12 |
| Operating environment | -5 to 45°C,<90%RH |
| Storage environment | -20 to 45°C,<90%RH |
- Large-bandwidth electro-optic phase modulation
Adjusts RF signals to optimize spectral bandwidth, suppress the SBS effect, and increase laser power. - High-precision spectral control
Uses advanced phase modulation technology for fine spectral control and power optimization. - Compact integrated design
The modular structure is compact and adaptable to various environmental conditions. - Flexible software architecture
Provides operational logs and fault diagnosis to ensure system stability. - Optimized algorithm
Utilizes a gradient descent algorithm and multi-objective function optimization to further enhance laser power output and system stability.
Thanks to its large bandwidth, high-precision control, superior beam quality, and stability, the NLS-100-CL tunable narrow linewidth laser is widely used in high-energy laser applications, accelerating the development of technologies in lidar, optical communications, and light field control systems.
