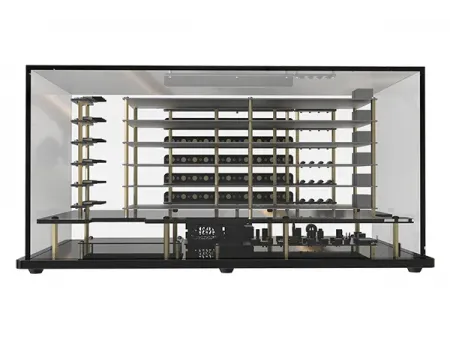

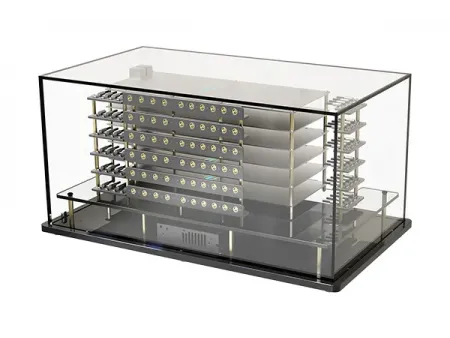

SPM-100-S Multi-Node Data Acquisition (DAQ) and Interlock Protection System
Digital Laser Components
EtherCAT data acquisition system allowing for sampling and recording of up to 100 acquisition nodes, with a safety interlock system to keep the device in a safe state
SPM-100-S multi-node data acquisition (DAQ) and interlock protection system is designed to solve the complex challenges of data acquisition and safety interlocks in industrial environments. By utilizing the EtherCAT communication protocol, it enables efficient multi-node data collection and stable transmission. The scalable data acquisition system also provides a comprehensive safety interlock mechanism to ensure the stability and safety of industrial production.
- Processor board
Based on the high-performance domestic RK3568 processor, this board serves as the system's master unit, responsible for integrating and recording all node data. - Sensor acquisition & safety interlock detection board
Utilizes a high-performance STM32H743 microcontroller, supporting 30 ADC interfaces and 8 DAC interfaces. Its innovative safety interlock circuit prevents false alarms. - Interlock control board
Triggers the protection mechanism when sensor data reaches a set threshold. The user can define custom sensor thresholds as needed. - Wide range of sensors
Includes photoelectric and temperature sensors, with options for customized sensors based on specific requirements.
- System performance
Supports a maximum of 100 nodes, 30 ADC channels, a 1kHz sampling rate, and 16-bit resolution, with a safety interlock response time of less than 60ns. - Data storage
Features built-in 1GB of storage for collected sensor data. - Communication speed
The communication speed between the master and slave units is adjustable, ranging from 1Mbps to 100Mbps.
- High-capacity multi-node acquisition
Supports up to 100 nodes, meeting the needs of large-scale industrial sites. - High-speed data transmission
The EtherCAT protocol ensures a data transfer rate of up to 100Mbps, guaranteeing real-time and precise data acquisition and transmission. - Comprehensive safety interlock mechanism
Automatically triggers an alarm signal when sensor data exceeds a preset threshold, safeguarding equipment and production safety.
- Interlock protection methods can be customized based on requirements.
- Supports personalized customization of various sensor types, ADC sampling rates, and UI interfaces.
The SPM-100-S multi-node data acquisition and interlock protection system is suitable for scenarios in laser systems and industrial automation that require efficient data acquisition and robust safety protection. This scalable data acquisition system provides a reliable, fast, and precise solution for data transmission and safety protection in industrial production, helping to improve efficiency and ensure safe operation.
