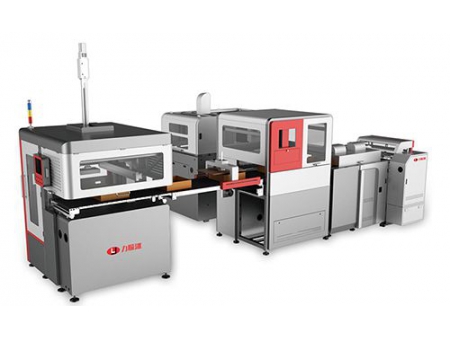

Complete paper box production line

Additionally, the LY-HB1600CT paper box making machine has advanced features such as high level of automation, information-based technology, intelligence, and Internet of Things (IoT) functionality. These features enable it to monitor the equipment’s operation status, parameter information, gas consumption, and electricity usage in real-time.

• High Positioning Accuracy

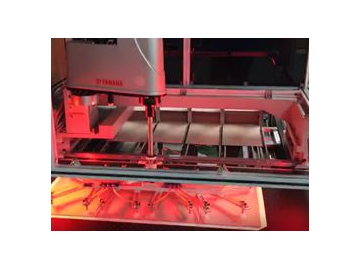

  The LY-485C visual positioning machine uses two industrial cameras with a resolution of 5 million pixels each, plus Japan-made robotic arm, ensuring the positioning accuracy of ±0.05mm.
• High Wrapping Accuracy

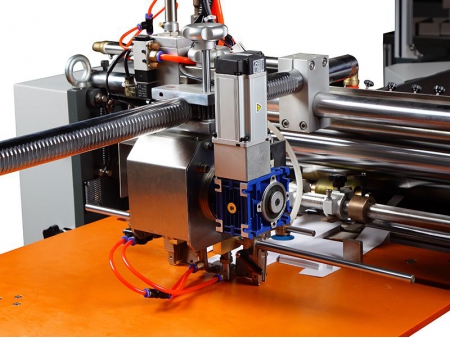

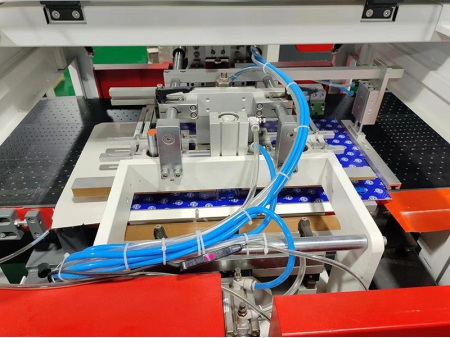

  The platform’s folded edge is accurately located using a visual manipulator, and the straight line position is then directly conveyed to the molding machine for edging. This approach minimizes operational errors in the synchronous belt and ensures precise alignment during the manufacturing process.
• High Adaptability
  Adjustable mold eliminates the need of mold changing in the future.
• High Precision Base Plate Positioning The base plate is firmly secured by a rotating cylinder as it is pressed onto the mold, which reduces the chances of error due to the base plate deformation.
• Superior Appearance

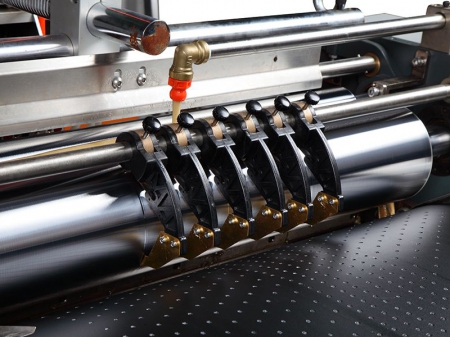

  During production and processing, the surface paper is wrapped and glued to the box without any defects such as overflowing glue, weak corrugation, wrinkles, scratches, warped corners, or bubbles.
• High Manufacturing Speed
  Separate HMI (human machine interface) system with a memory function allows for quick mold changes, easy operation, and high efficiency, contributing to the top manufacturing speed of 20-25 pieces per minute.
• Powerful Host Function
  The host boasts impressive capabilities, including the ability to position flat cardboard for the inner linings of cases, as well as making two-piece boxes and irregular-shaped boxes. Additionally, the host can easily connect to other molding modules from Lishunyuan, which avoid redundant investment in equipment purchase.

• All computer-based settings
• Troubleshooting
• Automatic feeding of papers and cardboards
• 24-hour control for preheating glue
• 999 built-in formulas in the machine
• Separate HMI (human machine interface) of box heat-sealing

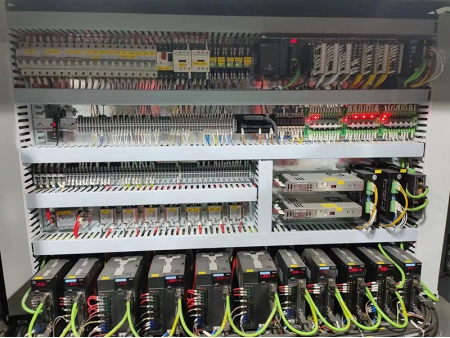

• INOVANCE servo control system
• Image positioning system and robotic picking & placing (with an error of ±0.05 mm)
• Automatic box lifting and retrieval
• Automatic system of adhesive viscosity control (optional)
• Convertibility to be equipped with cardboard splicing machine (optional)

There are some box making line that we featured for choose your best
