Industrial Freight Elevator Supplier
FUJI elevators demonstrate high levels of safety, reliability, efficiency, and lifespan. Our industrial freight elevators are widely used in commercial buildings and industrial facilities in over 70 countries worldwide.
FUJI offers gear and gearless freight elevators that incorporate cutting-edge elevator engineering technology, a powerful traction system, and high-strength mechanical design. These elevators can accommodate heavy loads, operate reliably in various harsh environments, and feature high transmission efficiency, low noise, and high leveling accuracy. In addition, their large carrying capacity, combined with an energy-efficient control system, allows for effective energy savings.
- Factory goods elevator
- Warehouse elevator
- Shopping mall goods elevator
- Load capacity: 630kg, 1000 kg, 2000kg, 3000kg, 3200kg, 5000kg, 7000kg, 10000kg
- Speed: 0.25m/s, 0.5m/s,1.0m/s, 1.5m/s, 2.0m/s, 4.0m/s
- Machine room: small machine room or machine room-less
- Precise positioning control system
Advanced sensors are used to provide high-precision real-time feedback on the motion state of the motor rotor, achieving millimeter-level accuracy in the positioning of the car running in the shaft and virtually error-free leveling.
- Wide door
Multi-panel cabin doors are used to achieve maximum door width, facilitating the handling of large-sized goods.
- Sturdy and durable cabin
High-strength sheet bending technology ensures a sturdy and durable cabin. In addition, FUJI has specially designed collision protection panels to provide multiple protections for the cabin.
- LED energy-saving lighting
DC-driven LED lighting is used as interior lighting, with extremely low power consumption and a power conversion efficiency close to 100%. Compared to traditional light sources, it can save over 80% of energy while providing the same lighting effect.
- Automatic interior lighting
Car automatic lighting technology is employed, fully considering the requirements of user-friendliness and energy conservation, ensuring that the lights are turned off when not in use, thus saving electricity.

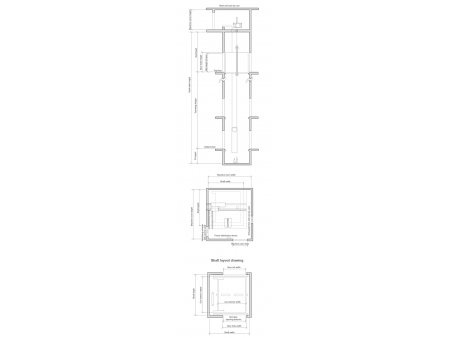

| Load (kg) | Speed (m/s) | Exterior size of car (W×D×H) (mm) | Door opening (W×H) (mm) | Shaft size (mm) | Machine room size (W×D×H) (mm) | Door opening type | ||
| W×D | OH (Shaft headroom height) | PIT (shaft pit depth) | ||||||
| 630 | 0.5 | 1200×1500×2200 | 1100×2100 | 2600×2400 | 4200 | 1500 | 2500×3000×2200 | Two panel side opening |
| 1000 | 0.5 | 1500×1800×2200 | 1200×2100 | 2250×2160 | 4200 | 1500 | 3000×3000×2200 | Two panel side opening |
| 2000 | 0.5 | 1570×2900×2200 | 1500×2100 | 2700×3260 | 4200 | 1500 | 3500×3000×2500 | Two panel side opening |
| 1.0 | 4500 | 1500 | ||||||
| 1.5 | 2000×2300×2200 | 2850×2660 | 4500 | 1600 | Four panel side opening | |||
| 2.0 | 4800 | 1800 | ||||||
| 4.0 | 6000 | 3850 | ||||||
| 3000 | 0.25 | 2070×3050×2200 | 1800×2100 | 3300×3410 | 4500 | 1500 | 3800×4200×2500 | Four panel side opening |
| 0.5 | ||||||||
| 3200 | 1.0 | 2070×3100×2200 | 2000×2100 | 3500×3460 | 4500 | 1500 | 3800×4200×2500 | Four panel side opening |
| 5000 | 0.25 | 2800×3400×2500 | 2400×2400 | 4200×3800 | 5000 | 1600 | 4200×3800×2800 | Four panel side opening |
| 0.5 | ||||||||
| 1.0 | ||||||||
| 7000 | 0.25 | 3000×4200×2500 | 2600×2400 | 4500×4600 | 5000 | 1600 | 4500×4600×2800 | Four panel side opening |
| 0.5 | ||||||||
| 10000 | 0.25 | 3070×5760×2500 | 2600×2400 | 4900×6200 | 5000 | 1600 | 4900×6200×2800 | Four panel side opening |
| 0.5 | ||||||||
Signal system, Ceiling series, Landing door series, We have different styles for you to choose
What is a freight elevator?
A freight elevator is designed for transporting goods and materials within a building. Compared to passenger elevators, freight elevators have slower operation speeds, can carry heavier loads, and are capable of withstanding more challenging working conditions.
What type of elevator is recommended for heavy cargoes?
For heavy cargoes, it is generally recommended to use heavy-duty freight elevators, such as Class C elevators, which have very high load capacities suitable for vehicles or heavy goods in industrial buildings.
What is the load capacity of a freight elevator?
Freight elevators can accommodate larger equipment, such as forklifts. Traditional passenger elevators typically have a maximum load capacity of around 630KG, while freight elevators (cargo elevators) usually have a load capacity of up to 10000KG.
What are the classifications of freight elevator loading?
According to load capacity, common classifications include:
- Class A elevators: for light goods, often used in commercial buildings, hotels, and office buildings.
- Class B elevators: for medium-sized goods, often used in commercial buildings and industrial structures.
- Class C elevators: for heavy goods, often used in industrial manufacturing and heavy transportation environments.
Can a cargo elevator be installed in a steel warehouse?
Freight elevators are very convenient to use and are popular in various industrial buildings, factories, and cargo transfer centers. In addition to being installed in buildings, they can also be installed in steel structure warehouses depending on the actual situation.
What are the differences between a freight elevator and a service elevator?
A freight elevator (or cargo elevator) is specifically designed for transporting heavy or large goods, with a focus on durability, higher load capacity, and larger usable space. A service elevator is mainly used for transporting light goods, service tools, and catering supplies, typically for logistical purposes in hotels and restaurants.
