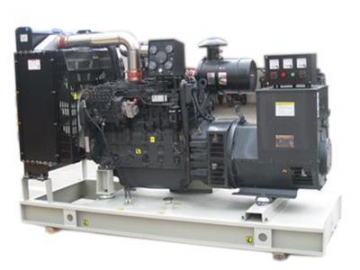

The Shanghai diesel engine generator set is designed with a Kent alternator and Comap controller. It can be used as a prime generator set, standby generator set and emergency generator set according to its specific uses.

Power range: 63kva-875kva.
Optional type: Quiet diesel generator, towable diesel generator, mobile emergency generator
(Notes: We are able to provide customized diesel engines according to customer requirements).

Brands support
The Shanghai diesel engine generator set adopts engines from SDEC, an engine manufacturer with more than 60 years of experience and the first to pass ISO9001 quality system certification in 1994. It has also obtained QS9000 quality system certification.

• The generator set with the Shanghai diesel engine features superior technology, easy access to spare parts and wide power range from 63kva-875kva.
• 135 diesel generator set uses rigid coupling (high strength bolt), with generator base made of bending steel plate, bringing efficient vibration damping; besides, high-efficient vibration damper is equipped, making it easy for installation without specific requirements.
• We are able to produce economical, high efficient diesel engine with powerful motor, strong power, low emission according to specific working conditions and features of generator set, making it a great choice for power station.

• The engine uses a one-piece crankshaft, gantry structure, connecting rod and short stroke piston, featuring compact and properly designed appearance, which is highly adaptable and can achieve interchangeability with 135 series diesel engine.
• The engine adopts new type re-entrant combustion chamber, which improves injection pressure and combustion process to meet standards of environment protection, such as the displacement and emission meet JB8891-1999 standards and noise emission follows GB14097-1999 standards.
• Excellent lubrication and cooling system reduces use of external pipeline and spare parts, the brushless alternator reduces oil leakage and make the engine more reliable.
• The diesel engine is perfectly matched with J98 and J114b exhaust-gas turbocharger, which can work well under plateau environment, with the power falling no more than 3% when being used in 5000m-high plateau areas.
• The engine is designed with high-vacuum exhaust ejector, pleated paper filter from Germany and ceramic coated piston ring. The diesel engine can be used in desert or high-dust places and it is free from premature abrasion.
• 138 series diesel engine is an improved model of 135 series manufactured by Wuxi Power Engineering Co.,Ltd, with the basic accessories being matched with 135 series.

• The alternator features easy installation and maintenance, which has easily operated binding post, rotatable diode and coupling bolt.
• Available for easy parallel connection with electrical grid and the other alternators.
• The alternator is designed with dynamic balancing rotor, well-sealed ball bearing, features single bearing and double bearing structure.
• The alternator has transition joints and couplings of various specifications.
• Meets main industry standards.
