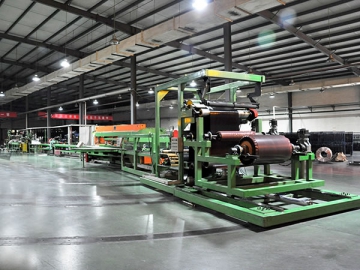

15°-70° Steel Cord Cutting Line
Request a Quote
View All: http://huahanmachine.com
Specifications
| Maximum Width of Steel Fabric (mm) | 1,000 | |
| Cutting Blade Length (mm) | 4,100 | |
| Width Range of Splicing Fabric (mm) | 60-440 | |
| Splicing Speed ( times/min) | 11 | |
| Splicing Angle | 15° ~75 ° | |
| Width of Rubber Selvedge (mm) | 20-30 | |
| Maximum Diameter of Rubber Strip (mm) | Φ 600 | |
| Dimensions (mm) | L | 41,500 |
| W | 12,800 | |
| H | 2,300 | |
| Gross Weight (t) | 12 | |
