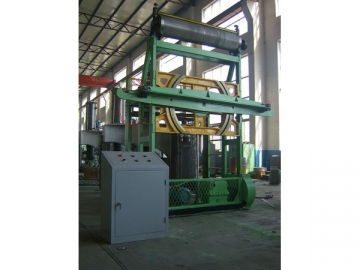

Vertical Cutter for Rubberized Fiber Cord
The vertical cutter is designed to cut rubberized fiber cords made of nylon, polyester, rayon or cotton fiber and calendered canvas with a specific width and angle. The cutting machine features a wide range of applications and is suitable for the production of fabric which is then used to manufacture bias tires and radial tires.
Specifications| Maximum Width of Feeding Fabric (mm) | 1,500 | Cutting Speed (cuts/min) | 14~16 |
| Maximum Diameter of Feeding Fabric (mm) | 1,200 | Fabric Feeding Speed (m/min) | 6 |
| Cutting Angle Range | 0 ° ~ 45 ° | Cloth Storage Capacity (mm) | 2880 |
| Cutting Angle Tolerance | < 0.5 ° | Cutting Width Tolerance (mm) | ± 2 |
| Cutting Width Range (mm) | 30-1000mm |
