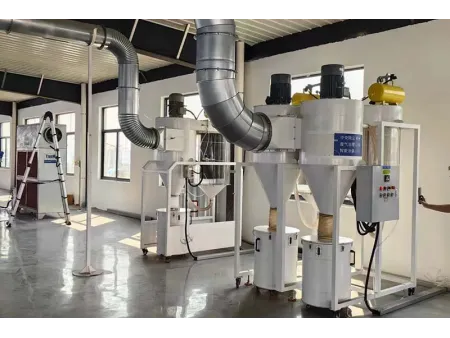

Stainless Steel Grinder with Dust Collector
Request a Quote
Stainless steel grinder with dust collector has a wide application in various industries, including feed, medical, chemical, food and non-metallic mineral. This machine is especially suitable for crushing dry brittle materials. With a simple but strong structure, it runs smoothly and produces uniform crushed materials efficiently. The machine is made of high-quality stainless steel material, and the inside of the chassis is precisely machined to get a smooth surface, which is easy to clean and hygienic.
Main Features
- Easy to dissemble and clean.
- Two structural forms are optional, one with a bracket and another bottom box, made of wire drawing and mirror-finish stainless steel.
- Forced air-cooled and water-cooled models are optional to meet the crushing requirements of thermosensitive materials
- Safe feeding device to ensure the safety of the material crushing process
- Stable operation, low vibration and noise.
- Easy to operate. The size of particles can be controlled by changing the mesh.
- The dust removal system effectively collects dust produced during the crushing process, protects workers and improves material utilization.
- Designed according to CE standards, safe and reliable.
Specifications
| Model | ZNGD320 | ZNGD450 |
| Host speed r/min | 4500 | 3200 |
| Rotor Working Diameter mm | 320 | 450 |
| Motor Power (kW) | 7.5 | 11 |
| Dust Collector Power (kW) | 1.1 | 1.1 |
| Output kg/h | 50-300 | 200-500 |
| Feed size mm | ≤12 | ≤12 |
| Grind size mm | 10-120 | 10-120 |
