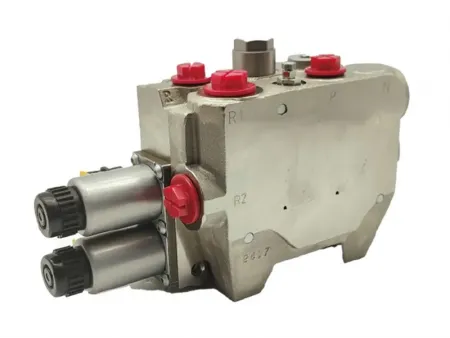

MCM-E Scissor Lift Electric Drive Main Valve
Request a Quote
Website: http://hydraulicvalve-en.com/12-2-scissor-lift-control-valve-for-electric-scissor-lift.html
Hydraulic valve blocks for smooth control of lifting, lowering, travel direction and speed of scissor lift
Applications
Designed for electric scissor lift platforms, this hydraulic control valve ensures smooth lifting and lowering, along with precise steering control, enhancing safety, stability, and efficiency during elevated operations.
Specifications
| Max. Operating Pressure | 250bar |
| Rated Flow | 20L/min |
| Voltage | DC20V±10% |
| Fluid Temperature Range | -30℃～110℃ |
| Ambient Temperature Range | -30℃～110℃ |
| Oil Viscosity Range | ISO 20～400mm²/s |
