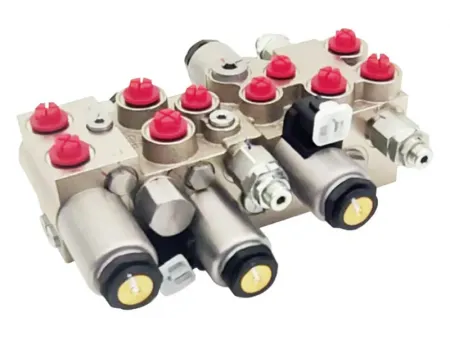

CCM-1 Lift Cylinder Control Valve Block (Upper Cylinder)
Request a Quote
Hydraulic valve blocks for smooth control of lifting and lowering of scissor lift
Applications
This lift cylinder control valve block is designed for scissor lift platforms, providing precise control of the upper lift cylinder during raising and lowering. With pressure-holding capability and controlled lowering speed, it ensures stable operation, enhanced safety, and improved platform efficiency.
Specifications
| Max. Operating Pressure | 240bar |
| Rated Flow | 20L/min |
| Voltage | DC24V±10% |
| Fluid Temperature Range | -20℃～80℃ |
| Ambient Temperature Range | -20℃～80℃ |
| Oil Viscosity Range | ISO 20～400mm²/s |
