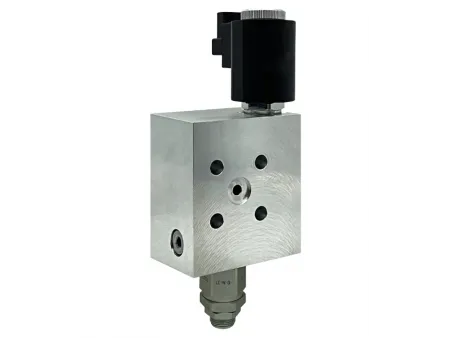

CCM-2 Lowering Cylinder Control Valve Block
Request a Quote

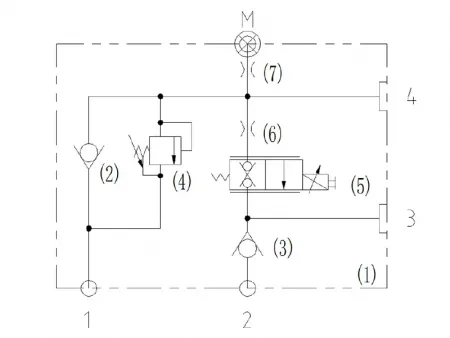

Hydraulic valve blocks for smooth control of lifting and lowering of scissor lift
Applications
Designed for scissor lift platforms, this valve block provides accurate and stable control of the lower lift cylinder during lifting and lowering actions. It incorporates pressure-holding functionality and adjustable lowering speed, ensuring safe, reliable movement and contributing to the scissor lift platform’s overall efficiency and operational safety.
Specifications
| Max. Operating Pressure | 240bar |
| Rated Flow | 20L/min |
| Voltage | DC24V±10% |
| Fluid Temperature Range | -20℃～80℃ |
| Ambient Temperature Range | -20℃～80℃ |
| Oil Viscosity Range | ISO 20～400mm²/s |
