YIHUA 3005D V Linear DC Power Supply (30V/5A Single Output) Manufacturer

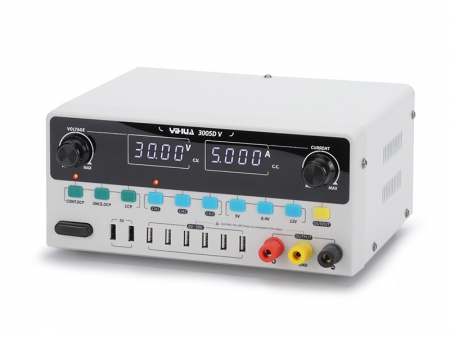

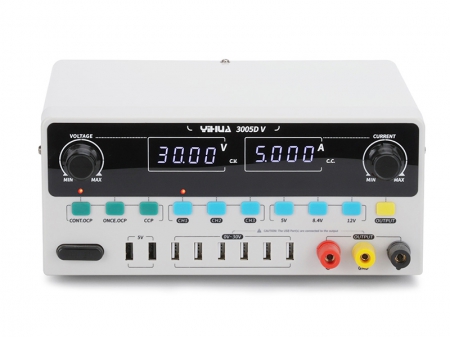

YIHUA 3005D V Linear DC Power Supply (30V/5A Single Output)

Request a Quote

Website: http://yihua-soldering.com/14-7-linear-dc-power-supply.html

This regulated DC power supply is specifically designed for scientific research, product development, testing laboratories, educational institutions, electronics assembly lines, and repair applications.

Key Characteristics

Features highly stable voltage regulation, excellent load capacity, and low ripple, with built-in short circuit, overcurrent, and overheat protection for enhanced safety.
Equipped with a toroidal transformer to minimize energy loss and reduce heat generation.
Offers quick-access fixed voltages of 5V, 9V, and 12V, plus three preset channels for fast switching between multiple voltage settings.
Supports constant current output with automatic overcurrent stop and auto-resume modes, allowing users to select the best option for their application.
Includes two 5V USB ports and six USB ports connected in parallel with the 30V output—ensure loads are connected correctly to avoid damage.

Parameters

Model	3005D V
Rated power	270W
Main unit dimensions	L196×W250×H117±10mm
Operating ambient temperature	-10〜40℃/14℉〜104℉
Relative humidity	DC 0~30V
Output voltage	150W
Voltage accuracy	< 0.1%±0.03V
Current accuracy	< 03%±3mA
Load regulation	< 0.6% 10mV
Ripple VRMS	< 0.5% (10Hz-1MHz)
Output current	0-5A

Main Features
